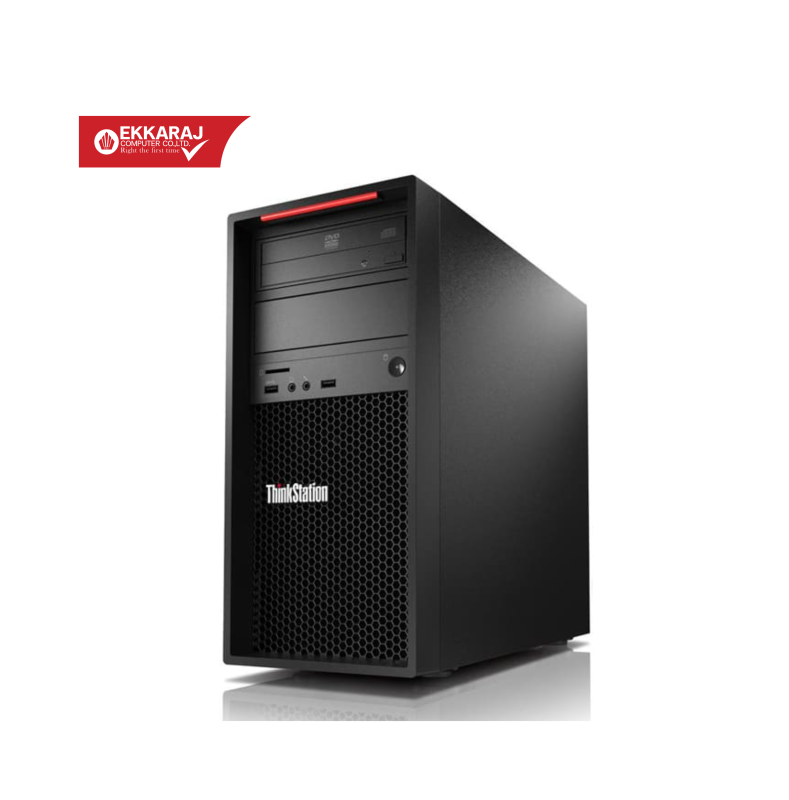

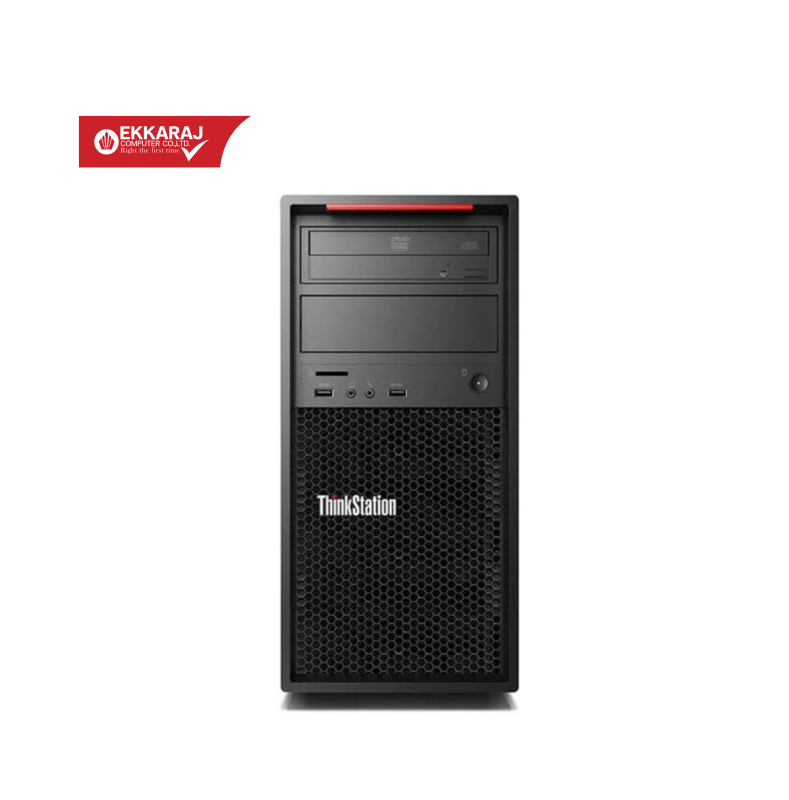

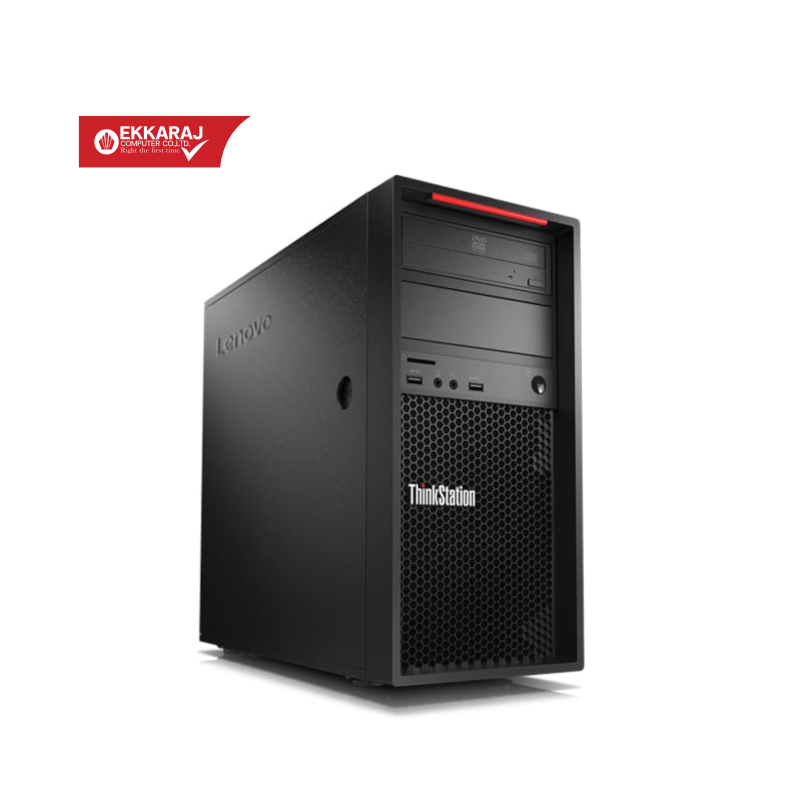

Workstation Lenovo [30BXS1V000] ThinkStation P520c Xeon W-2223/ 8GB/1TB/NVIDIA T400 4GB/Win11Pro

Model

ThinkStation P520c

Name

(30BXS1V000) Workstation “Lenovo”ThinkStation P520c Xeon W-2223/ 8GB/1TB HDD/NVIDIA T400 4GB/Win11Pro

Processor

Intel® Xeon® W-2223 (4C / 8T, 3.6 / 3.9GHz, 8.25MB)

RAM

1x 8GB RDIMM DDR4-2933 ECC, Up to 256GB (4x 64GB RDIMM)

Storage

1x 1TB HDD 7200rpm 3.5″ SATA6Gb/s

Storage Support

Up to 4x 3.5″ SATA HDD / 2.5″ SATA HDD / 2.5″ SATA SSD + 5x M.2 PCIe® SSD
• 3.5″ HDD up to 6TB each
• 2.5″ SATA HDD up to 500GB each
• 2.5″ SATA SSD up to 2TB each
• 2.5″ SAS HDD up to 600GB each
• M.2 SSD up to 2TB each

Graphics

Discrete 1x NVIDIA® T400 4GB

Chipset

Intel® C422 Chipset

Wireless

None

Optical Disk Drive

None

Ports

2x USB 3.2 Gen 1 (F)
1x headphone (3.5mm) (F)
1x microphone (3.5mm) (F)
2x USB 2.0 (R)
4x USB 3.2 Gen 1 (R)
1x Ethernet (RJ-45) (R)
1x line-in (3.5mm) (R)
1x line-out (3.5mm) (R)
1x microphone (3.5mm) (R)
2x PS/2 ports (keyboard / mouse) ®

Expansion Slots

Supports 4 PCIe® slots.
• Slot 1: PCIe 3.0 x16, full height, full length, 75W, double-width, by CPU
• Slot 2: PCIe 3.0 x8, full height, full length, 25W, by CPU
• Slot 3: PCIe 3.0 x16, full height, full length, 75W, by CPU
• Slot 4: PCIe 3.0 x4, full height, half length, 25W, by PCH

Power Supply

625W Platinum Fixed

Keyboard & Mouse

USB Traditional Keyboard, Black, Thai &
USB Calliope Mouse, Black

Case Color

Black

Security

Discrete TPM 2.0, TCG certified, FIPS 140-2 certified

Form Factor

Tower

Dimensions

175 x 426 x 376 mm (6.89 x 16.77 x 14.8 inches, with feet)

Weight

14.5 kg (31.96 lbs, maximum configuration)

OS

Windows® 11 Pro for Workstations, English

Warranty

3Y Premier Support Upgrade from 1Y Onsite
