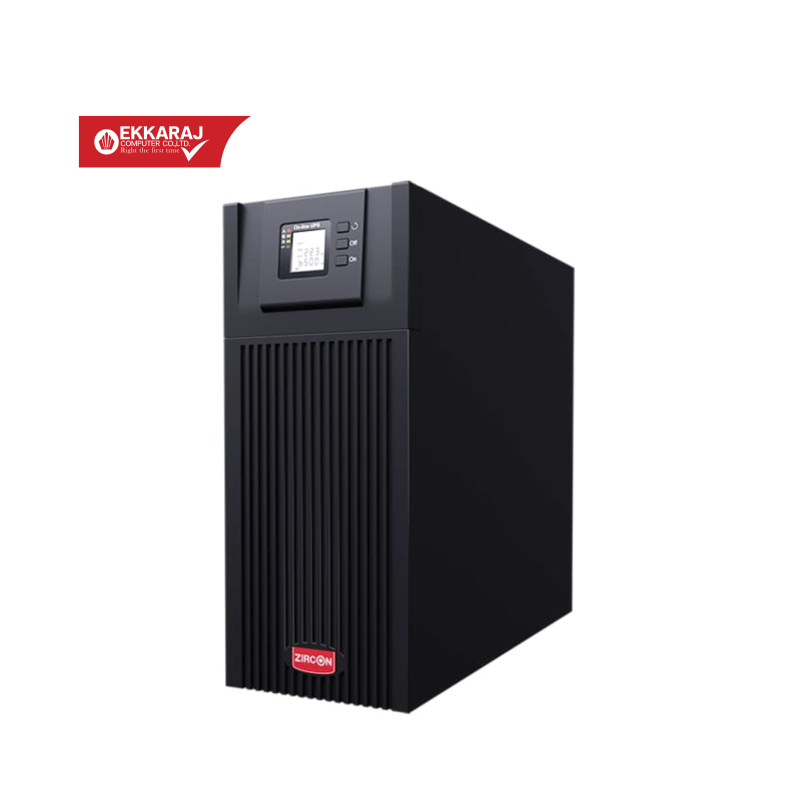

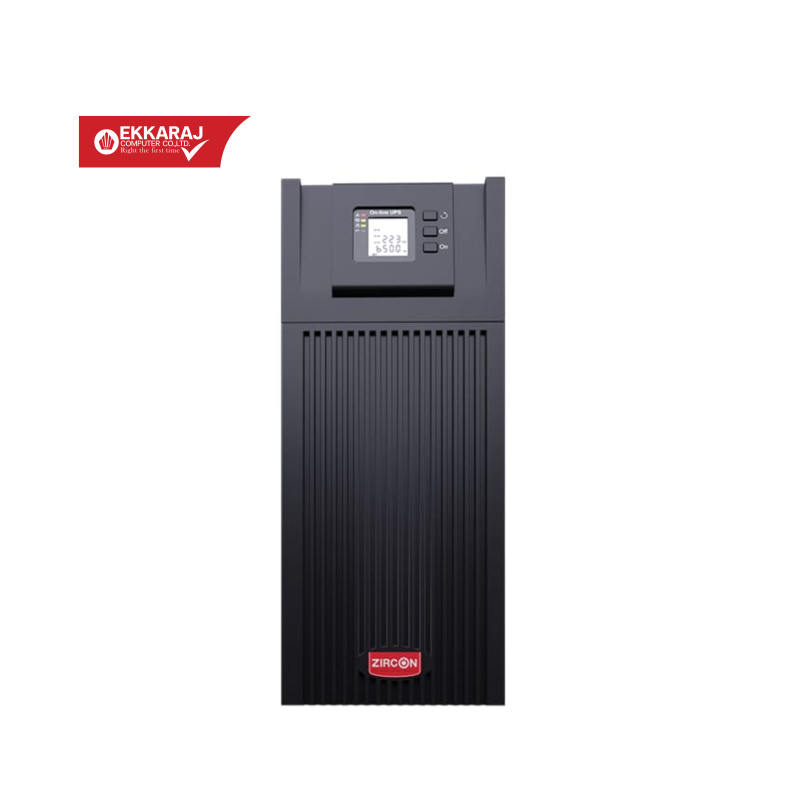

UPS Zircon [ZC-MP 15kVA/13.5kW] ZC-MP 15000VA/13500W

Topology

True Online

Waveform Type

Pure Sine Wave

Output Power Capacity

15000VA/13500W

Power Factor

0.9

Nominal Output Voltage

220/230/240VAC+/-2%

Output Frequency

50Hz/60Hz+/-0.1%

Output Connections

hardwired Single phase & Ground

Universal Output

None

Nominal Input  Voltage

380/400/415VAC (settable)+/-25%

Input Frequency

50Hz/60Hz (settable)+/-10%

Input Voltage Range

380/400/415VAC (settable)+/-25%

Input Connections

hardwired 3phase 4 wires and ground

Battery Type

Lead-Acid

Typical Recharge Time

Boost charge up to 20Hr(Max)

LCD Display

Yes

Form Factor

Tower

Dimension

655 x 255 x 590 mm

Weight

45 kg

Warranty

3 Years Onsite
