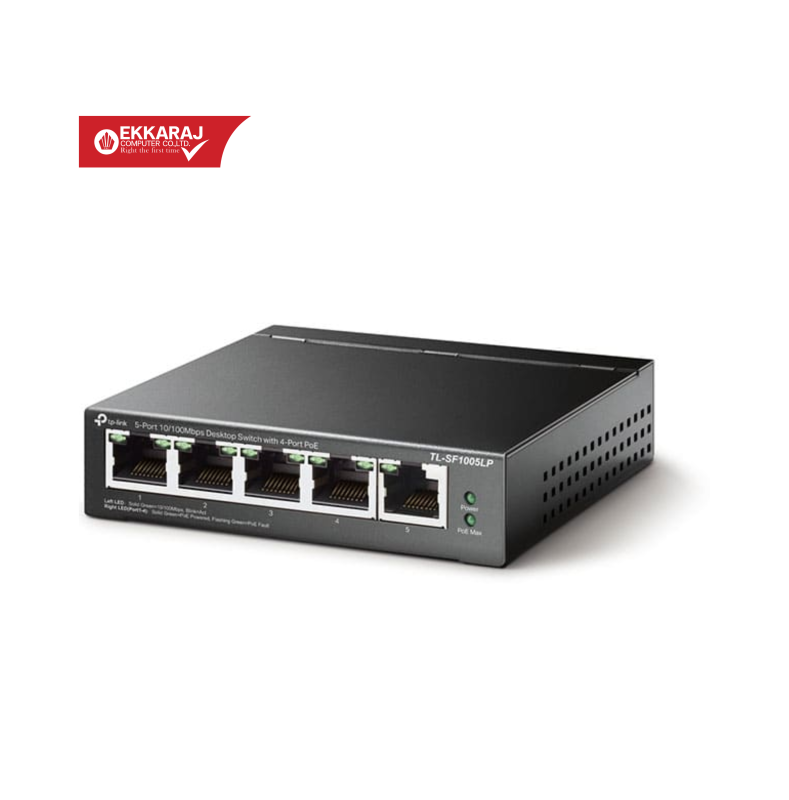

Switch TP-Link [TL-SF1005LP] Unmanaged Switch 1 + 4 PoE

Interface

5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE), AUTO Negotiation, AUTO MDI/MDIX

Switching Capacity

1 Gbps

Packet Forwarding Rate

0.744 Mpps

MAC Address Table

2K

Packet Buffer Memory

–

Jumbo Frame

2 KB

Fan Quantity

Fanless

Power Supply

External Power Adapter (Output: 53.5 V DC / 0.81 A)

PoE+ Ports(RJ45)

Standard: 802.3 af compliant, PoE Ports: Ports 1–4, Power Supply: 41 W

Dimensions ( W x D x H )

3.9×3.9×1.0 in (100×98×25 mm)

Mounting

Desktop Switch

Max Power Consumption

1.9 W (220 V / 50 Hz, no PD connected), 47 W (220 V / 50 Hz, with 41 W PD connected)

Max Heat Dissipation

6.48 BTU/h(no PD connected), 160.27 BTU/h(with 41 W PD connected)

Warranty

limited lifetime
