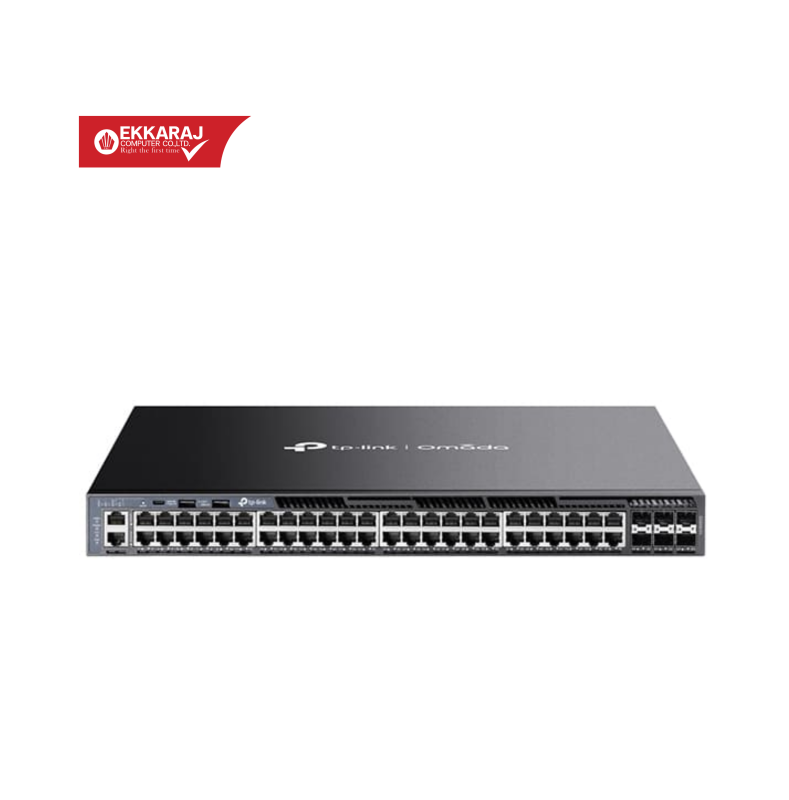

Switch TP-Link [SG6654X] Managed Switch 48G/6SFP+

Interface

• 48× 10/100/1000 Mbps RJ45 Ports
• 6× 10G SFP+ Slots
• 2× USB 2.0 Ports
• 1× RJ45 Console Port
• 1× USB Type-C Console Port
• 1× RJ45 Management Port

PoE ports

None

L3 features

• IP Interfaces:
– IPv4: Max 256, IPv6: Max 256
• Static Routing
– Max 1,024, IPv6: Max 512
• Host Route Table: Max 6,100 entries
• RIP: Version v1/v2, Max 8,190
• OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097
• VRRP: Version v2/v3, Max 64 groups
• ECMP: 256 entries, max 32 ECMP Nexthops per Destination
• Static ARP: 512 static entries
• Dynamic ARP: 7,680 dynamic entries
• Proxy ARP
• DHCP Server:
– Max 8K IP Pools
– Max 1,000 Manual Binding Entries
• DHCP Relay:
– Relayed Interface
– Relayed VLAN

Packet Forwarding Rate

160.4 Mbps

Switching Capacity

216 Gbps per Unit

MAC address table size

32 K

Packet Buffer Memory

3MB

Fan Quantity

4x Internal fixed fans

Mounting and enclosure

Rackmountable

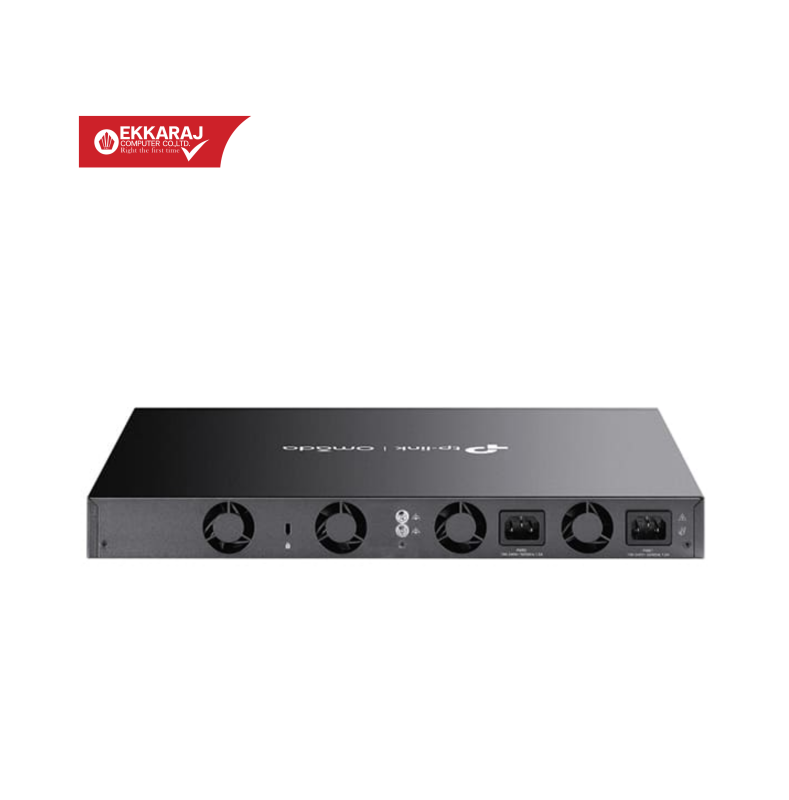

Power Supply

2x Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)

Power Consumption

39.8 W (220 V/50 Hz)

Dimension

17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)

Warranty

limited lifetime
