SWITCH REYEE [RG-RAP1200(F)] REYEE WI-FI 5 1267MBPS WALL-MOUNTED
* ราคารวมภาษีมูลค่าเพิ่ม 7% แล้ว *
การรับประกัน 3 ปี
ราคา
฿11,500.00
รายละเอียด
|

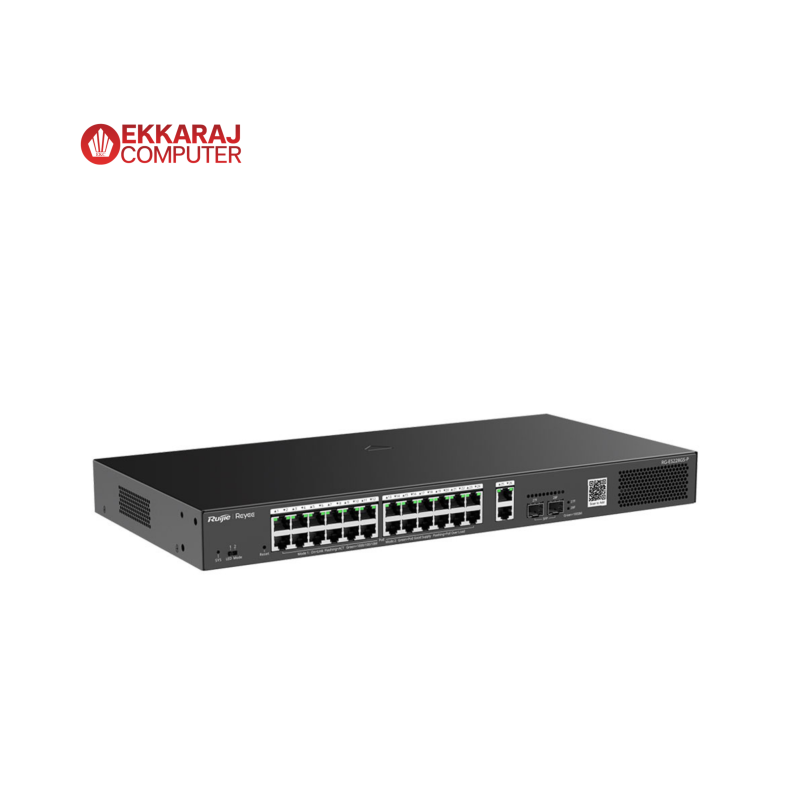

POE Switch RG-ES228GS-P Product Specification |
|
|
Ports |
RG-ES228GS-P 24 Ports 10/100/1000 Base-T จ่ายไฟมาตรฐาน IEEE 802.3af/at (PoE/PoE+) |
|
Maximum output power per PoE port |
30W |
|
10/100/1000Base-T ports |
26 |
|
1000Base-X SFP ports |
2 |
|
PoE/PoE+ ports |
24 |
|
Max. PoE budget |
370W |
|
Layer Type |
Layer 2 |
|
Switching capacity |
56 Gbps |
|
Forwarding rate |
41.664 Mpps |
|
Packet Buffer |
4.1 Mbit |
|
MAC address table |
8000 |
|
Maximum VLAN Support |
16 |
|
Dimensions (W x D x H) |
440 mm x 214.9 mm x 44 mm |
|
Weight (With package) |
4.0 kg |
|
MTBF (Hours) |
> 200,000 |
|
Software Features |
|
|
10/100/1000M Auto/Full/Half Duplex Negotiation |
Support |
|
Flow Control |
Support |
|
Storm Suppression |
Support |
|
Management IP |
10.44.77.200 |
|
VLAN |
Support 802.1Q VLAN |
|
Port-based VLAN |
Support |
|
DHCP Client |
Support |
|
DHCP Snooping |
Support |
|
Many-to-one Port Mirroring |
Support |
|
Downlink Loop Protection |
Support |
|
Loop Disabled Port |
Support |
|
Disconnection Duration |
Support |
|
Cable Testing |
Support |
|
Management |
Web-based Management |
|
Reset Button |
Front |
|
Power Supply Slot |
Single, fixed power supply |
|
Power Consumption |
≤ 280W |
|
Power Supplies |
100 - 240V AC, 6A |
|
Fan Adaptive Speed Adjustment |
Support |
|
Acoustic Noise |
< 45dB |
|
Operating Temperature |
0°C to 40°C |
|
Storage Temperature |
-40°C to 70°C |
|
Operating Humidity |
10% to 90% RH |
|
Storage Humidity |
5% to 95% RH |
|
Port Surge |
4 kV |
|
Certificate |
CE, RoHS |
|
ประกัน |
ประกันศูนย์ Ruijie Thailand 3 ปี |
