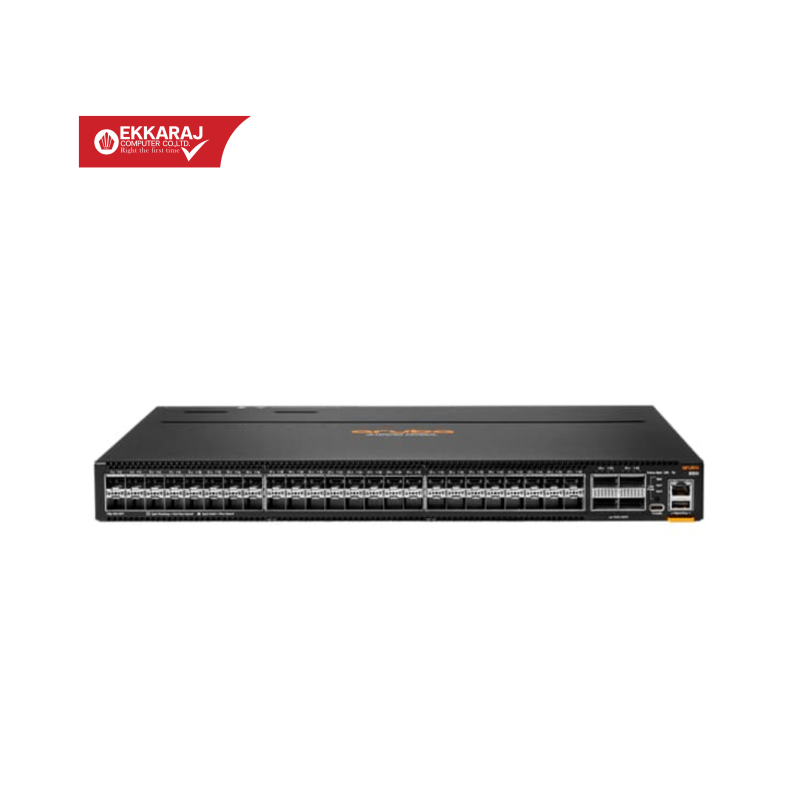

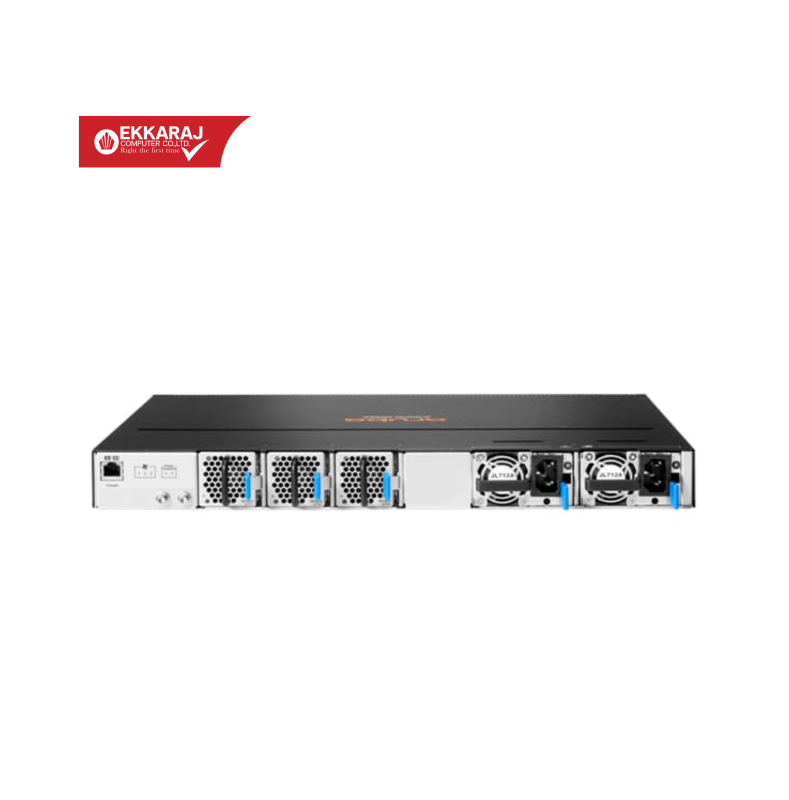

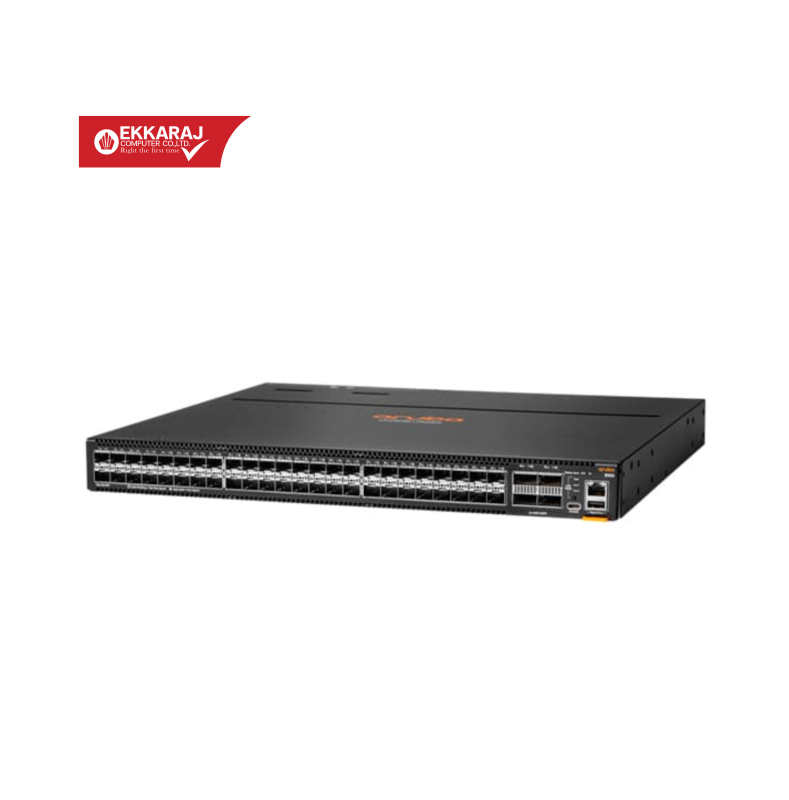

Switch Aruba [R9W90A] CX 8100 48SFP+/4QSFP28

Power consumption

120W Idle Power / 450W Max Power

I/O Ports and Slots

48 ports of 1GbE/10GbE (SFP/SFP+)
4 ports of 40GbE/100GbE (QSFP+/QSFP28)

Memory and Processor

Quad Core ARM Cortex™ A72 @ 1.8 GHz

Mounting and enclosure

Mounts in an EIA standard 19-inch rack or other equipment cabinet; horizontal surface mounting only; 2-post and 4-post mounting options available

Throughput

1.76Tbps

Switch Capacity

1.76 Tbps

MAC address table size

147456 entries

Frequency

47/63 Hz

AC voltage

100-127V 7.1A for 100-127VAC 200-240V 3.4A for 200-240VAC

Management

RJ-45 serial and USB-C console; RJ-45 Ethernet port; USB-Type A

Dimension

1.73in x 17.4in x 16.0in

Weight

8.16 kg

warranty

Limited Lifetime
