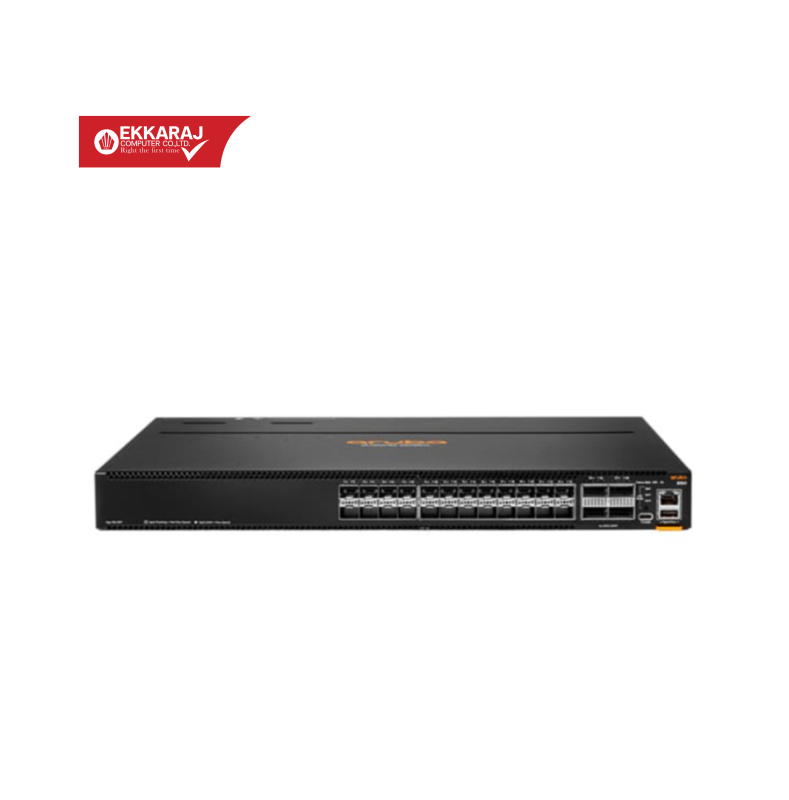

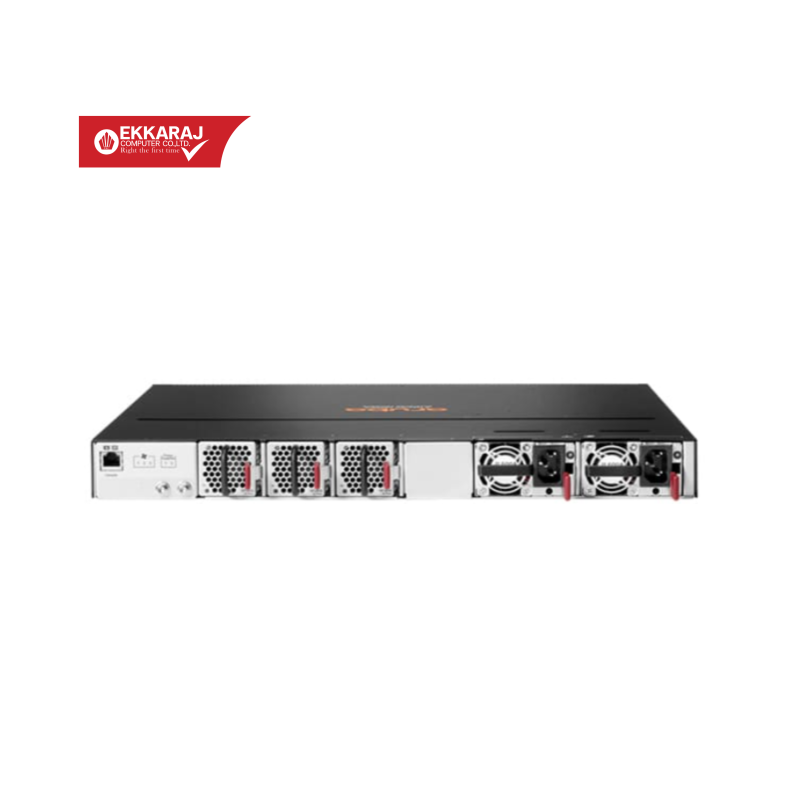

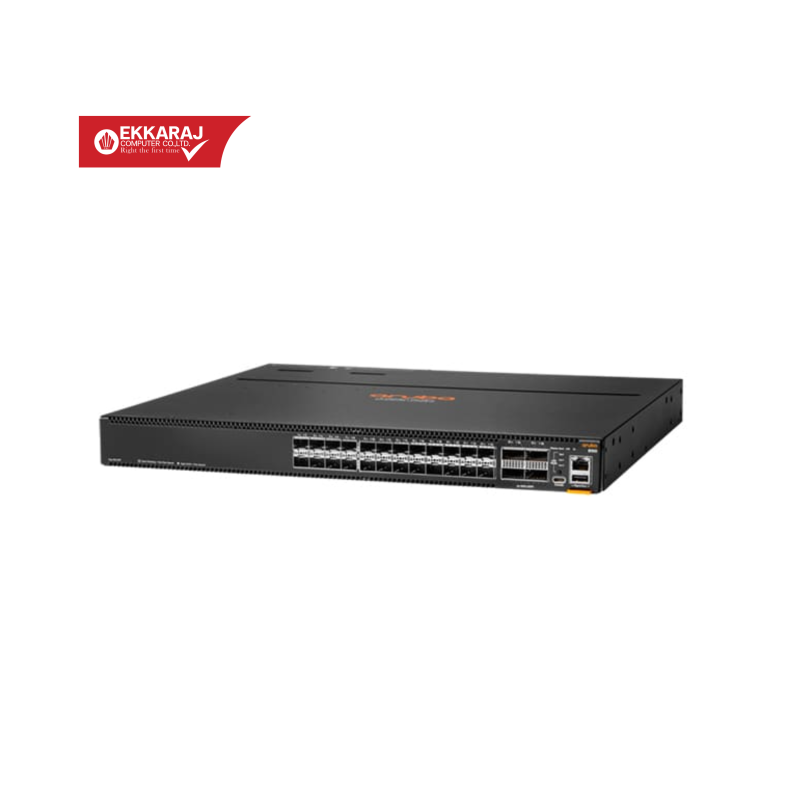

Switch Aruba [R9W86A] CX 8100 24x 10GbE (SFP+)/4x 40GbE/100GbE (QSFP+/QSFP28)

Power consumption

120W Idle Power / 375W Max Power

I/O Ports and Slots

24 ports of 1GbE/10GbE (SFP/SFP+)
4 ports of 40GbE/100GbE (QSFP+/QSFP28)

Memory and Processor

Quad Core ARM Cortex™ A72 @ 1.8 GHz

Mounting and enclosure

Mounts in an EIA standard 19-inch rack or other equipment cabinet; horizontal surface mounting only; 2-post and 4-post mounting options available

Throughput

1.76Tbps

Switch Capacity

1.28 Tbps

MAC address table size

147456 entries

Frequency

47/63 Hz

AC voltage

100-127V – 7.1 A for 100-127VAC 200-240V – 3.4A for 200-240VAC

Management

RJ-45 serial and USB-C console RJ-45 Ethernet port USB-Type A

Dimension

1.73in x 17.4in x 16.0in

Weight

8.16 kg

warranty

Limited Lifetime
