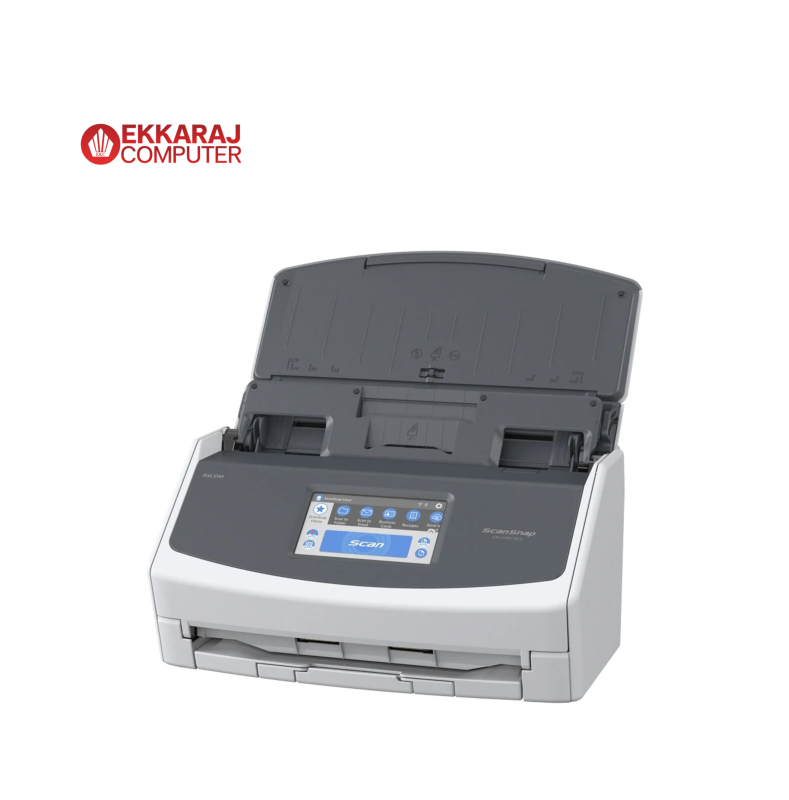

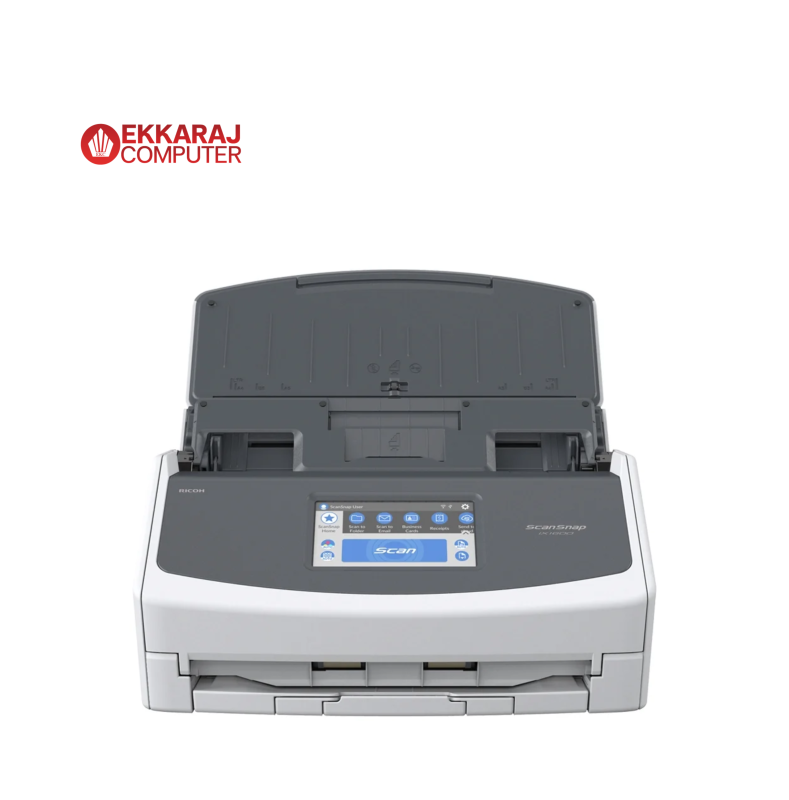

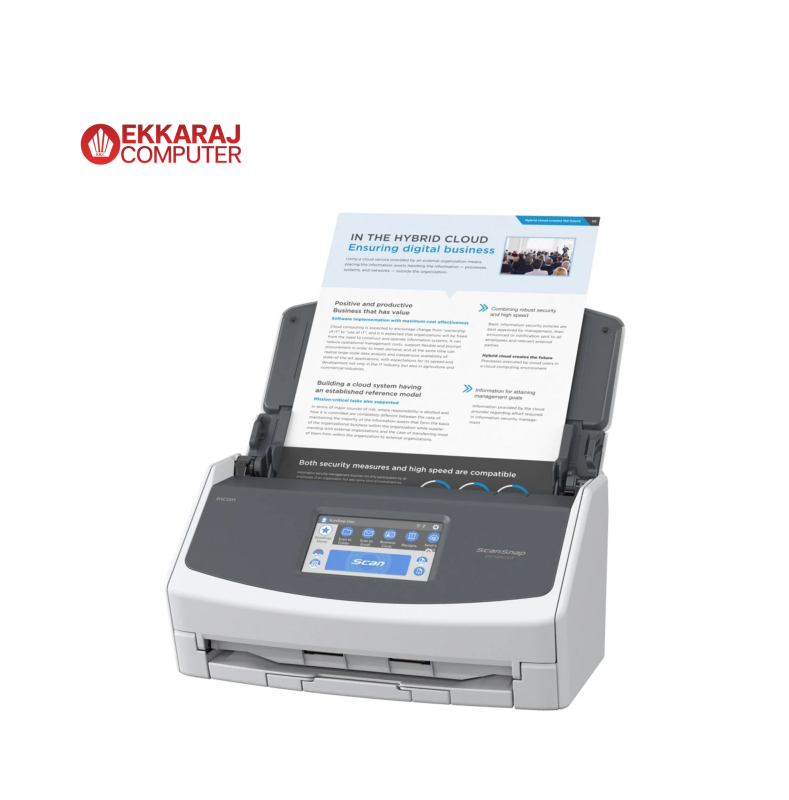

Scanner RICOH ScanSnap [IX1600]

Brand

RICOH

Model

iX1600

Scan Resolution

600 dpi

Selectable Resolution

150, 200, 300, 600 dpi

Scanning Element

N/A

Scanner Colour Depth

N/A

Scan Speed

Simplex / Duplex : 40 ppm (Color / Grayscale: 150 dpi, Monochrome: 300 dpi)

Scanning Technology

CIS x 2 (Front x 1, Back x 1)

Light Source

3 color LED (Red / Green / Blue)

ADF

Yes

Duplex Scanning

Yes

Document Size

Normal Scan
Minimum 50.8 x 50.8 mm (2 x 2 in.)
Maximum 216 x 360 mm (8.5 x 14.17 in.)

Long Paper Scanning
3,000 mm (863 mm in 32-bit)
Smart Device: 863 mm (Duplex), 1,726 mm (Simplex)

Paper Weight

40 to 209 g/m2 (11 to 56 lb)

A8 or less : 128 to 209 g/m2 (34 to 56 lb)

Cards : 0.76 mm or less (Compliant with the ISO7810 ID-1 type) (Includes embossed cards in landscape orientation)

Paper Capacity

ADF : 50 sheets (A4, 80 g/m2 or 20 lb)

Memory

N/A

Display Panel

4.3 in. color TFT touch screen

Interface

USB 3.2 Gen1x1 (Connector Type: Type-B)

Network

N/A

Wireless

IEEE802.11a/b/g/n/ac
Frequency band: 2.4 GHz / 5 GHz

Functions

Color, Grayscale, Monochrome, Automatic (Color / Grayscale / Monochrome detection)

Operating System Compatibility

ScanSnap specific driver
Windows® : Does not support TWAIN / ISIS®
macOS : Does not support TWAIN

Mobility

Access Point Connect Mode (Infrastructure mode)
Direct Connect Mode (Ad-hoc mode)

Features

Overlap detection (Ultrasonic sensor), Length detection

Daily Duty Cycle

N/A

Power Supply

AC 100 to 240 V, 50/60 Hz

Power Consumption

Operating Mode
17 W or less

Sleep Mode
USB connected: 1.5 W or less
Wi-Fi connected: 1.6 W or less

Environment

Temperature : 5 to 35 °C (41 to 95 °F)
Relative Humidity : 20 to 80% (Non-condensing)

Package Contents

Safety Precautions, AC cable, AC adapter, USB cable, Receipt Guide

Dimension

(W x D x H) 29.2 x 16.1 x 15.2 cm

Net Weight

3.4 KG

Package Dimension

(W x D x H) 25 x 40 x 24 cm

Gross Weight

4.56 KG

Volume

24000.00 cm3
