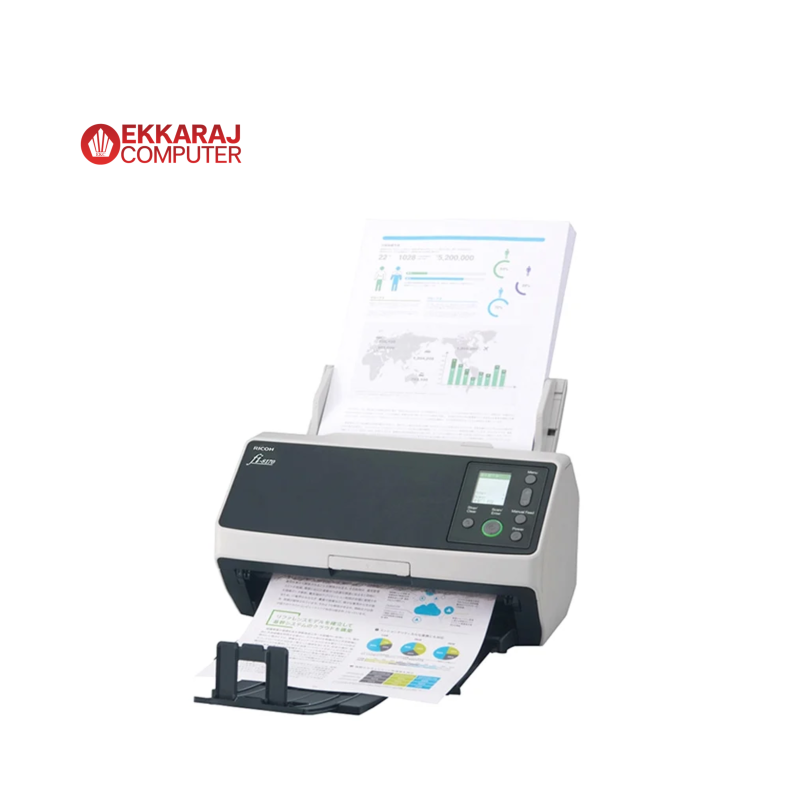

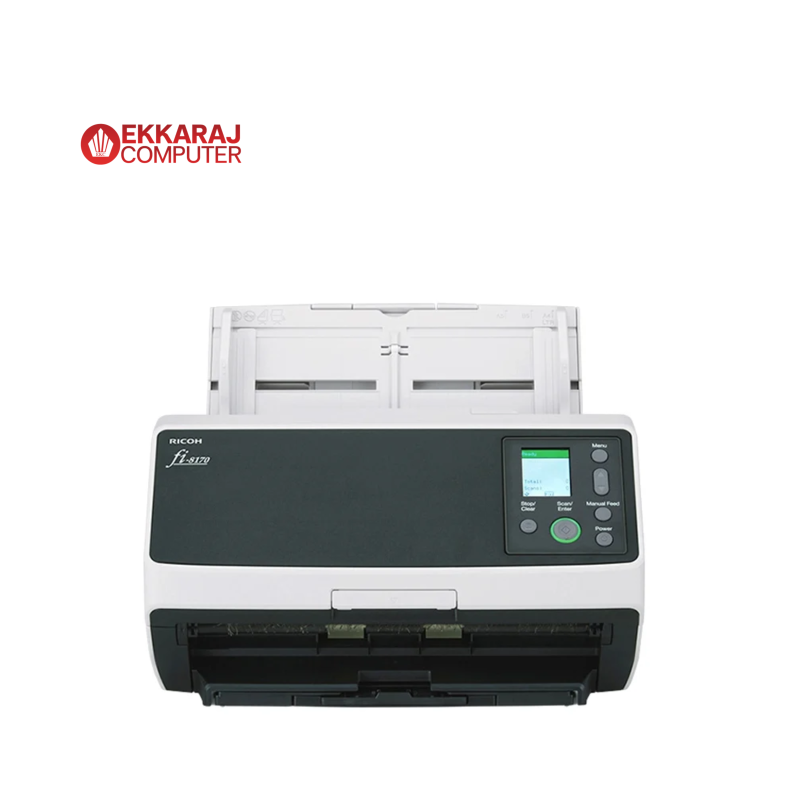

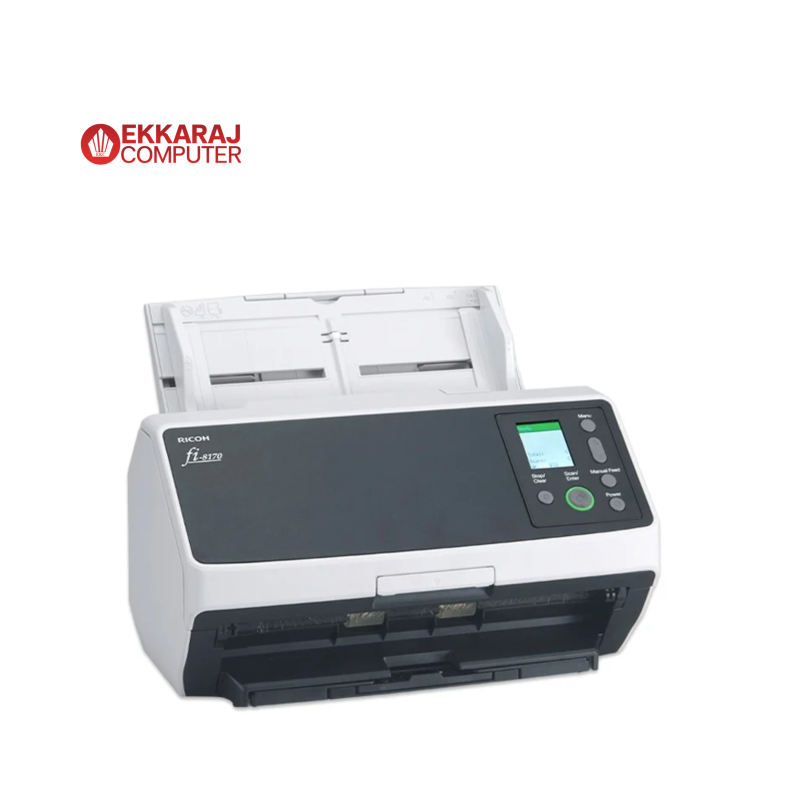

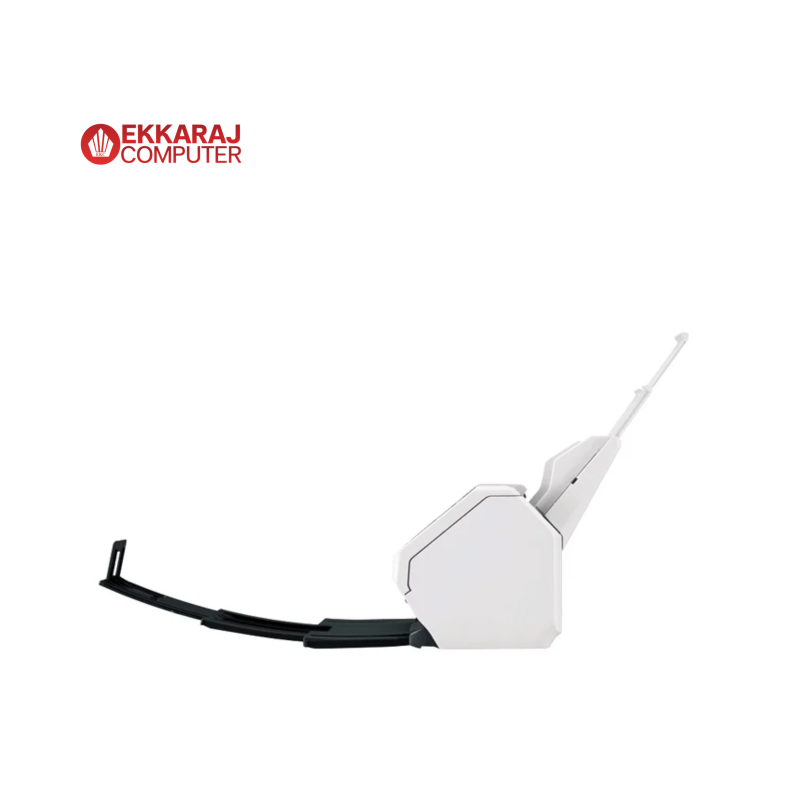

Scanner RICOH [Fi-8170]

Brand

RICOH

Model

Fi-8170

Scan Resolution

600 dpi

Selectable Resolution

50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)

Scanning Element

N/A

Scanner Colour Depth

Color : 24-bit
Grayscale : 8-bit
Monochrome : 1-bit

Scan Speed

Simplex : 70 ppm (200/300 dpi)
Duplex : 140 ipm (200/300 dpi)

Scanning Technology

Image Sensor Type : CIS x 2 (front x 1, back x 1)

Light Source

RGB LED x 2 (front x 1, back x 1)

ADF

Yes

Duplex Scanning

Yes

Document Size

Maximum : 215.9 x 355.6 mm (8.5 x 14 in.)
Minimum : 48 x 50 mm (1.9 x 2 in.)
Long Page Scanning : 6,096 mm (240 in.)

Paper Weight

Paper : 20 to 465 g/m² (5.3 to 124 lb)
Booklet : Less than 7 mm (0.276 in.)
Plastic Card : 1.4 mm (0.055 in.) or less

Paper Capacity

100 sheets (A4 80 g/m² or Letter 20 lb)

Memory

N/A

Display Panel

Color LCD display

Interface

USB 3.2 Gen1x1 / USB 2.0 / USB 1.1

Network

LAN (10BASE-T, 100BASE-TX, 1000BASE-T)

Wireless

None

Functions

Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge filler, Vertical streaks reduction, Background pattern removal, Cropping, Static threshold

Operating System Compatibility

Windows® 11, Windows® 10, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, macOS, Linux (Ubuntu)

Mobility

N/A

Features

Background Colors : White / Black (selectable)
Multifeed Detection : Overlap detection (Ultrasonic sensor), Length detection
Paper Protection : Image monitoring, Sound detection (iSOP)

Daily Duty Cycle

Expected Daily Volume : 10,000 sheets

Power Supply

AC 100V - 240V 50/60 Hz

Power Consumption

Operating Mode : 28 W or less / 17 W (Eco mode)
Sleep Mode :
   LAN: 2.0 W or less
   USB: 1.4 W or less
Auto Standby (Off) Mode : 0.2 W or less

Environment

Temperature : 5 to 35 °C (41 to 95 °F)
Relative Humidity : 15 to 80% (Non-condensing)

Package Contents

ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM

Dimension

(W x D x H) 30 x 17 x 16.3 cm

Net Weight

4 KG

Package Dimension

(W x D x H) 25 x 40 x 26 cm

Gross Weight

5.3 KG

Volume

26000.00 cm3
