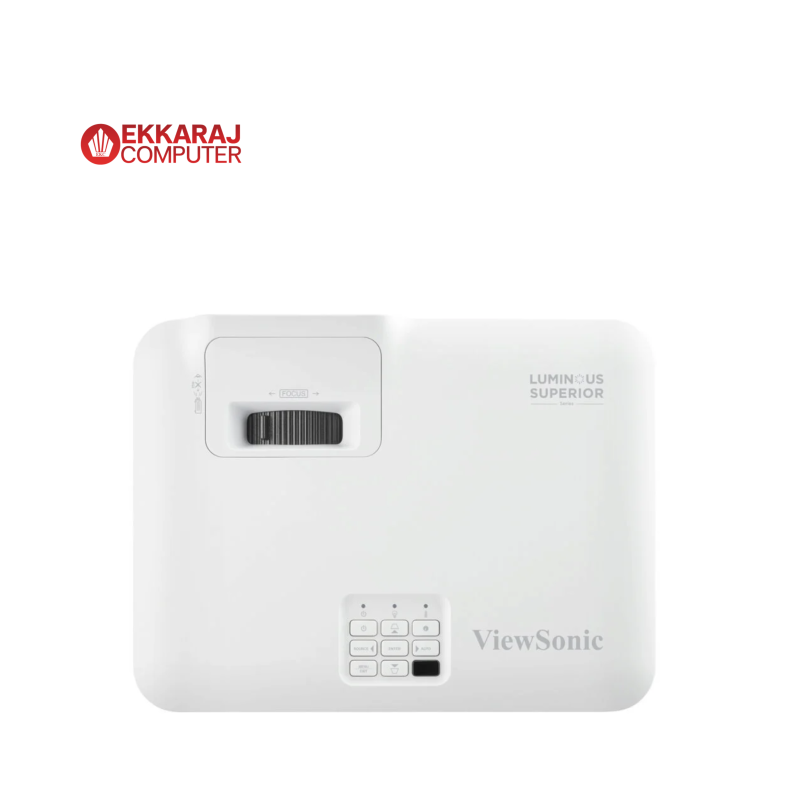

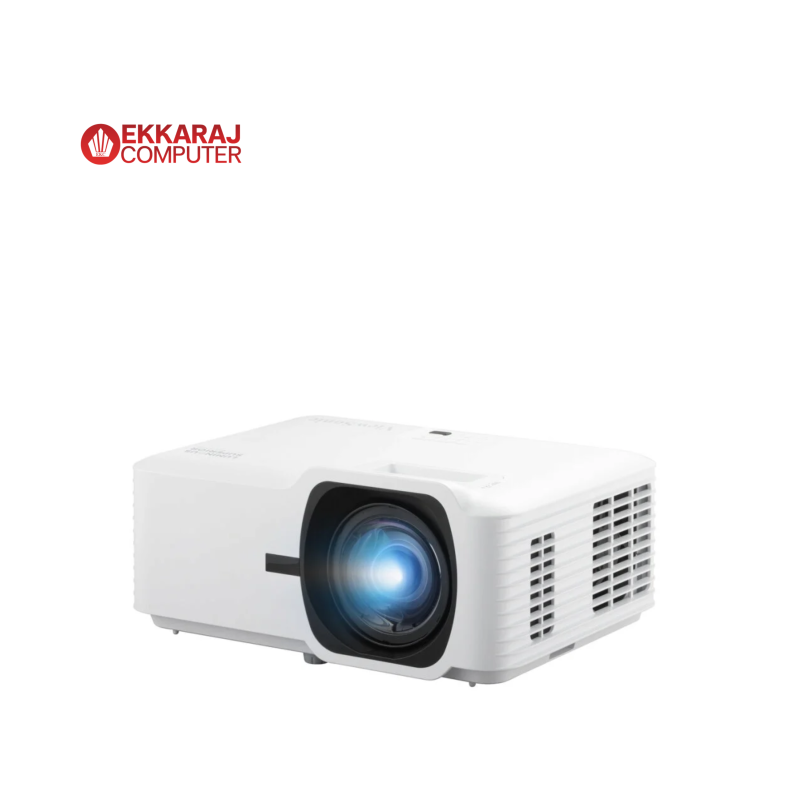

Projector VIEWSONIC [LS711HD]

Brand

VIEWSONIC

Model

LS711HD

Projector Technology

0.65" 1080p 3rd generation laser phosphor

Resolution

1920 x 1080

Display Compatibility

Resolution Support : VGA(640 x 480) to WUXGA_RB(1920 x 1200)
*RB-Reduced Blanking
HDTV Compatibility : 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Display Color

1.07 Billion Colors

Display Size

35" - 300"

Brightness (ANSI Lumens)

4200 (ANSI Lumens)

Contrast Ratio

3,000,000:1

Aspect Ratio

N/A

Distance

0.38 - 3.29m (100"@1.10m)

Throw Ratio

0.496

Lens

F=2.8, f=7.51mm

Projection Offset

132%+/-10%

Zoom Ratio

Optical Zoom : Fixed
Digital Zoom : 0.8x-2.0x

Panel Display

N/A

Interface

Input
HDMI : 2 (HDMI 1.4/ HDCP 1.4)

Output
Audio-out (3.5mm) : 1
USB Type A (Power) : 1 (5V/1.5A)

Control
RS232 (DB 9-pin male) : 1
USB Type A (Services) : 1 (share with USB A Output)

Card Reader

None

Network

None

Speaker

15W

Light Source

Laser Phosphor

Lamp Life(STD/ECO)(hr)

Normal Mode : 20,000
SuperEco Mode : 30,000 (Eco)

Keystone Correction

H:+/-15°, V:+/-15°

Audible Noise

Audible Noise (Normal) : 30dB
Audible Noise (Eco) : 24dB

Special Features

N/A

Power Supply

Power adaptor
Input : 100~240V
Output : 19.5VDC / 11.79A

Power Consumption

Normal : 210W
Standby : <0.5W

Environment

Operating Temperature : 0~40°C

Package Contents

1 x Power Cord
1 x Remote Control
1 x QSG
1 x Lens Cover

Dimension

(W x D x H) 28.6 x 21.6 x 12.9 cm

Net Weight

3.15 KG

Package Dimension

(W x D x H) 40 x 28 x 15.5 cm

Gross Weight

4.88 KG

Volume

17360.00 cm3
