Projector EPSON [EB-L630U] Full HD WUXGA Laser

Brand

EPSON

Model

EB L630U

Projector Technology

RGB liquid crystal shutter projection system (3LCD)

Resolution

WUXGA (1920 x 1200)

Display Compatibility

N/A

Display Color

N/A

Display Size

50" - 500"

Brightness (ANSI Lumens)

White Light Output (Normal / Extended):
6,200lm / 4,340lm

Colour Light Output:
6,200lm

Light Output (Center):
6,500lm*

Contrast Ratio

Over 2,500,000:1

Aspect Ratio

16:10

Distance

Zoom : Wide:
50" - 500" [1.44 - 14.76 m]

Zoom : Tele:
50” - 500” [2.35 - 23.84 m]

Throw Ratio

1.35-2.20 (Wide-Tele)

Lens

Type: Optical Zoom (Manual) / Focus (Manual)
F-Number: 1.50 – 1.70
Focal Length: 20 – 31.8 mm

Projection Offset

N/A

Zoom Ratio

1.0-1.60

Panel Display

None

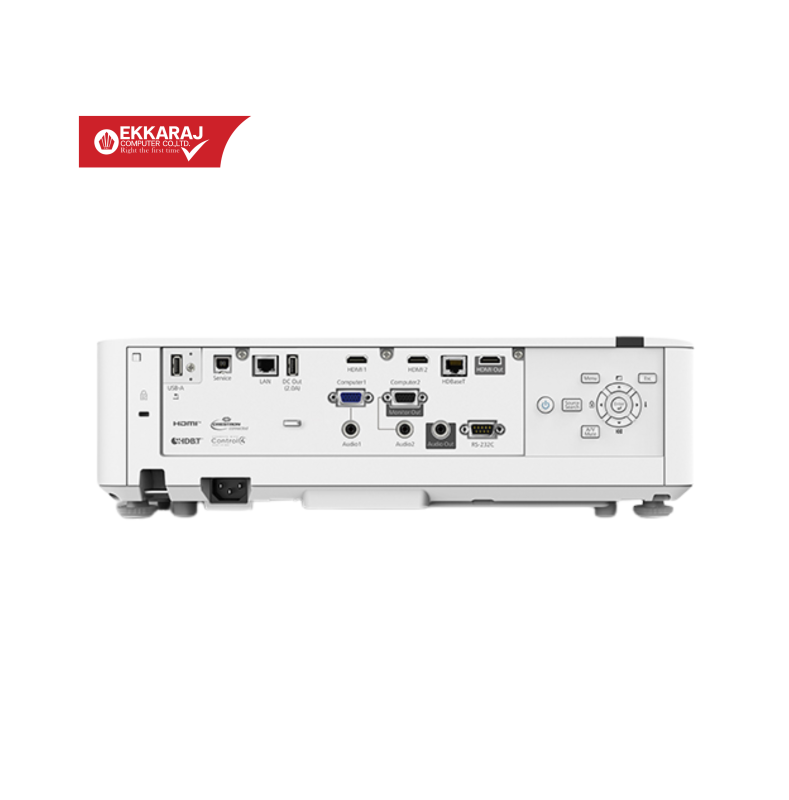

Interface

Analog Input:
D-Sub 15Pin: 2

Digital Input:
HDMI: 2 (HDCP 2.3)
HDBaseT: 1 (HDCP 2.3)

Audio Input:
Stereo Mini Jack: 2

Audio Output:
Stereo Mini Jack: 1

Control I/O:
RS-232C: D-Sub 9pin x 1

USB Input:
USB Type A: 2 (Port 1 for PC Free, Firmware Update, Copy OSD Settings; Port 2: for 5V/2A power supply only, no USB function)

Analog Video Output:
D-Sub 15Pin: 1

Digital Video Output:
HDMI: 1 (HDCP 2.3)
HDBaseT: 1 (HDCP 2.3)

Card Reader

None

Network

Wired LAN RJ45 x 1 (100Mbps)

Built-in Wireless (IEEE 802.11ac)
Supported Mode: Infrastructure, Access Point(Wi-Fi Direct)

Speaker

10W Monaural

Light Source

Type: Laser Diode

Lamp Life(STD/ECO)(hr)

20,000 hours (Normal) / 30,000 hours (Extended)

Keystone Correction

Vertical/Horizontal Keystone:
±30º / ±30º

Projection Orientation:
360º Free

Audible Noise

38dB / 27dB (Normal / Eco)

Special Features

N/A

Power Supply

100 - 240 V AC ±10%, 50/60 Hz

Power Consumption

Laser Diode ON (Normal / Extended):
345 W / 258W

Stand By:
(Normal/Eco): 2.0W / 0.3W

Environment

Single Use:
Low Altitude (0 - 2,286m/7,500ft): 0 - 45 °C <32 - 113 °F>
High Altitude (Over 2,286m/7,500ft to 3,048m/10,000ft): 0 - 40 °C <32 - 104 °F>
20% - 80% Humidity, No Condensation

Multi-projection Use:
Low Altitude (0 - 2,286m/7,500ft): 0 - 40 °C <32 - 104 °F>
High Altitude (Over 2,286m/7,500ft to 3,048m/10,000ft): 0 - 35 °C <32 - 95 °F>
20% - 80% Humidity, No Condensation

Package Contents

Power Cable (3m)
Remote Control with 2x AA Battery
User Guide
Cable Cover
