Projector BENQ [WDC10]

Brand

BENQ

Model

WDC10

Interfaces

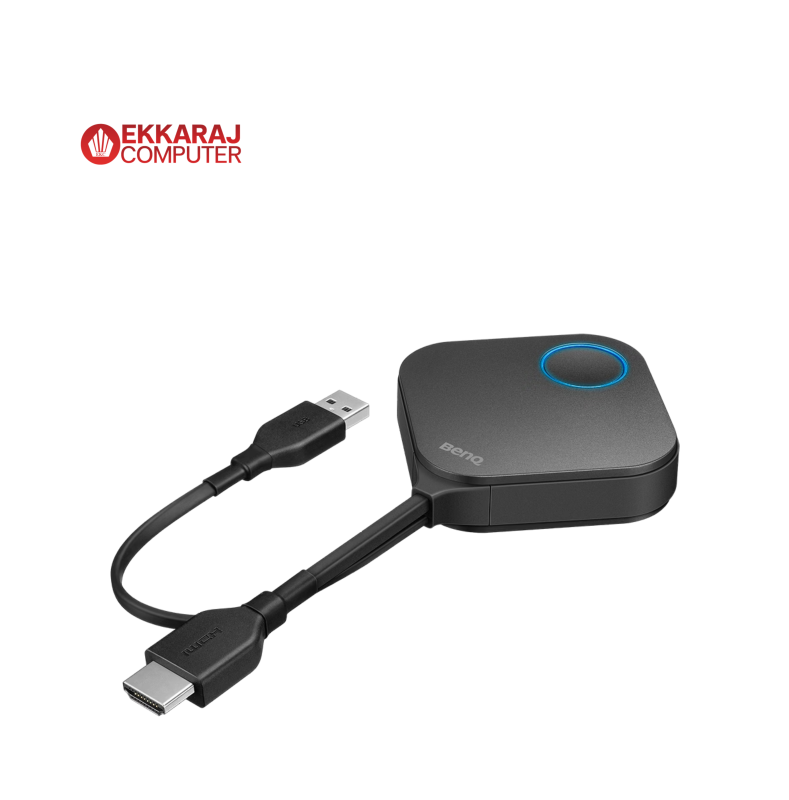

InstaShow Button
USB Type A, HDMI Cable
Reset Button x1
Mode Key x1

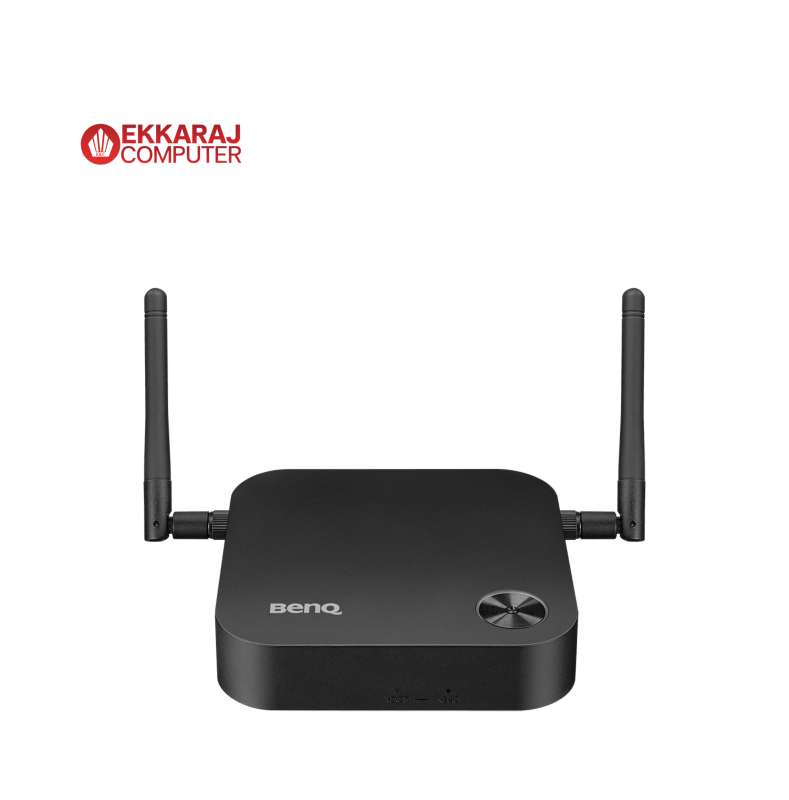

InstaShow Host
Power Button x1
Paring Key x1
LAN x1 (10/100 Mbps)
Video Output x1 HDMI 1.4 (video and audio)

Input Resolution

Resolution : Up to 1920x1080
Simultaneous Connections : 16 pcs

Output Resolution

Video Outputs : HDMI 1.4, comply with HDCP
Frame Rate : Up to 60 fps depending on environment‎
Resolution : 800 x 600, 1280x720 (720P),1024 x 768 (XGA),1280 x 768,1280x800(WXGA),1280 x 1024,1280 x 960,1360 x 768,1440 x 900,1400 x 1050,1680 x 1050, 1920x1080 (1080p)

Audio

Stereo, Radio quality 16 bits 48KHz‎

Wireless

IEEE 802.11ac, 5GHz, 2T2R‎ / Up to 867mbps
Reach : Max. 8m between InstaShow Button and InstaShow Host‎

Network

InstaShow Host
1 x LAN (10/100 Mbps)

LED Indicators

InstaShow Button
*Red (boosting), Green (wifi connected), Blue (presenting)‎

InstaShow Host
*Red (boosting), Green (ready for connection), Blue (presenting)

System Supported

Windows, MAC, Chrome. Any OS supports HDMI standard 1.4

Features

InstaShow Cradle
Dimension (WxHxD) : 85 x 97.5 x 170.4 mm
Weight : 630g

Environment

Temperature Range
Operating: 0°C to +40°C (+32°F to +104°F)
Storage: -10°C to +60°C (+14°F to +140°F)

Humidity
Operation: 10% to 80% relative humidity, non-condensing
Storage: 5% to 90% relative humidity, non-condensing

Power Supply

InstaShow Button
DC 5V±10%, 0.9A‎

InstaShow Host
DC 5V±10%, 1.5A
DC Power Jack (micro USB)

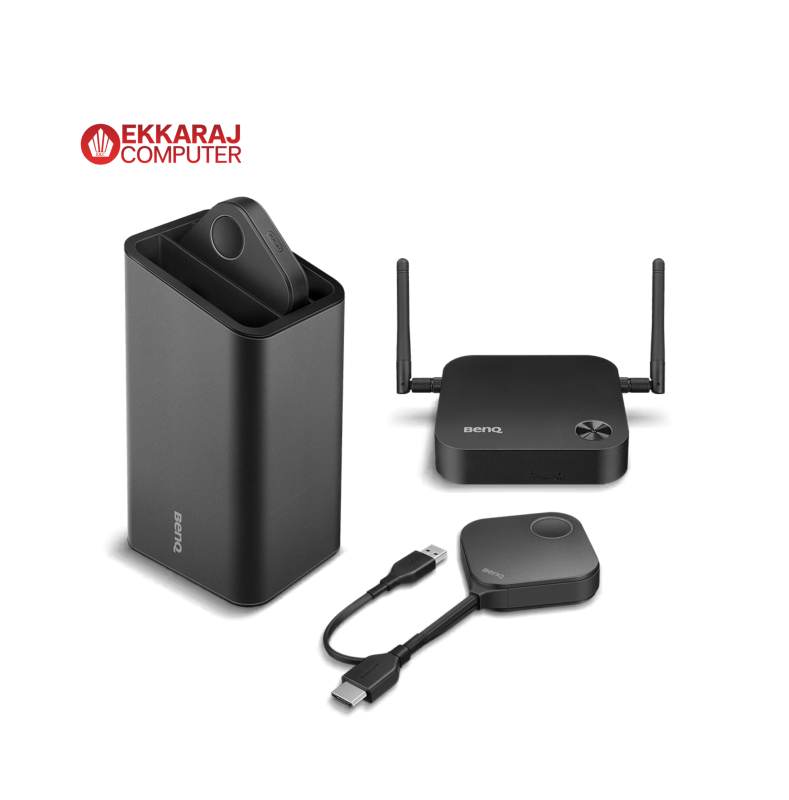

Package Contents

1 x Safety Statement
1 x Cradle
1 x USB Extended Cable (15cm)
1 x USB Extended Cable ((80cm)
1 x Quick Start Guilde
2 x InstaShow Button
1 x InstaShow Host
1 x USB Power Cable (150cm, USB Type A 3.0, micro USB)
1 x HDMI Cable (80cm)
2 x Antenna (Black)
1 x Adapter
1 x Velcro Strap (black)
1 x Double-side Sponge Tap
4 x Rubber Feet
4 x Screws

Package Dimension

(W x D x H) 17 x 34 x 14 cm

Gross Weight

2.11 KG

Volume

8092.00 cm3
