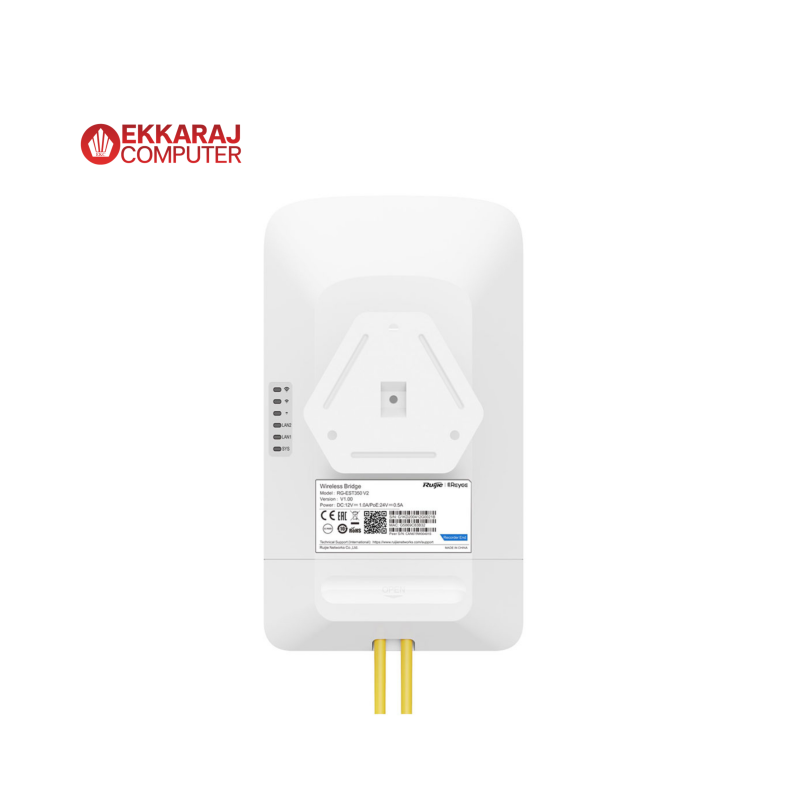

IRELESS BRIDGE REYEE [RG-EST350 V2] 5GHz DUAL-STREAM 802.11AC 5KM

Product Specification

Model

RG-EST350 V2

Radio Design

5 GHz Single-Band Dual-Stream

Operating Band

802.11a/n/ac: 5.150～5 .350GHz, 5.470~5.725GHz , 5.725～5 .850GHz
(country specifc)

Antenna

Directional antennas, 15 dBi

Polarization

Horizontal: 31°, Vertical: 14°

Bridging Distance

5 KM (recommended)

Spatial Streams

2x2, MU-MIMO

Memory/Flash

128 MB/8 MB

Maximum Throughput

Up to 867 Mbps at 5 GHz

Ports

2 10/100/1000Base-T Ethernet ports, port 1 with Passive PoE

Max. Transmit Power

≤400 mW(26 dBm) (adjustable)

IP Rating

IP54

Lightning Protection

4 KV

Installation

Wall-mounted/ Pole-mounted

Weight

0.5 kg

Dimensions ( D x W x H )

230 mm × 132 mm × 48 mm

Software Features

802.1Q VLAN

Support

Multi-VLAN Transparent Transmission

Support

ARP

256

Max. Concurrent Connections

8000

Ping

Support

Traceroute

Support

Management IP

192.168.120.1

Wireless

SSID/SSID Hiding

Password

Open / WPA-PSK / WPA2-PSK / WPA/WPA2-PSK

RSSI

-58 dBm@1KM
-66 dBm@3KM
-70 dBm@5KM

Performance

230 Mbps@1KM(HT40)
200 Mbps@3KM(HT40)
150 Mbps@5KM(HT40)

One-Click Optimization

Support

DFS

Support

Management

Zero Provisioning on Cloud

QR-Code / Serial Number

CWMP(TR069) Support

Support

Point-to-Point

Support

Point-to-Multipoint

Recommended 3

AP/CPE Switchover

Support

Interface Configuration

Support

Maintanance

Alarm

Support

Diagnostics

Support

Reboot

Support

Cloud Features

Remote Access

Support

Remote Reboot

Support

Statistics Monitoring

Support

Working mode

Normal / High performance / Anti-interference

Remote SSH

Support

Remote EWeb

Support

Camera Reference

3Mbps Video Bit Rate

50 Units/1KM
45 Units/3KM
20 Units/5KM

4-5Mbps Video Bit Rate

30 Units/1KM
25 Units/3KM
12 Units/5KM

6Mbps Video Bit Rate

20 Units/1KM
13 Units/3KM
8 Units/5KM

Physical Features

LED indicator

LEDs indicate the bridging quality:
LED off: No bridging
One LED blinking: <-75dBm
One LED on: -75dBm< RSSI <-73dBm
One LED on and one LED blinking: -73dBm< RSSI <-71dBm
Two LEDs on: -71dBm< RSSI <-68dBm
Two LEDs on and one LED blinking: -68dBm< RSSI <-64dBm
Three LEDs on: >-64dBm

Hardware Button

1 reset button

Power Supply

12 VDC power supply or 24 VDC Passive PoE

Power Consumption

9W

Environment

Operating temperature: -30°C to 65°C (-22°F ~ 149°F)
Storage temperature: -40°C to 85°C (-40°F ~ 185°F)
Operating humidity: 5% to 95% (noncondensing)
Storage humidity: 5% to 95% (noncondensing)

MTBF

> 250,000H

รับประกัน

3 ปี
