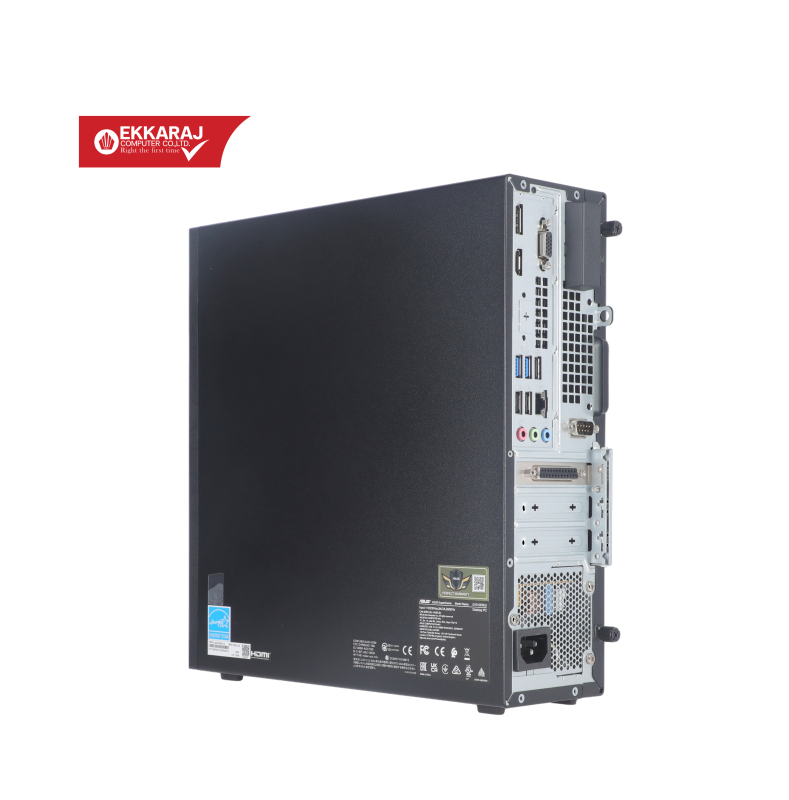

Desktop PC Asus ExpertCenter [D701SERES-514500007X] (90PF05N1-M00EE0) i5-14500/16GB/512GB SSD/Win11Pro

Brand

ASUS

Model

D701SERES-514500007X (90PF05N1-M00EE0)

Processor

Intel Core i5-14500 (2.6GHz up to 5.0GHz, 24MB Intel Smart Cache)

AI Engine

None

Chipset

Intel B760 Chipset

Graphics

Integrate Graphics : Intel UHD Graphics 770

Main Memory

16GB DDR5 U-DIMM

Memory Slot

4x DDR5 U-DIMM slot

Max Memory

128GB

Storage

512GB M.2 2280 NVMe™ PCIe® 4.0 SSD

Storage Slot

1x M.2 2230 connector for storage
1x M.2 2280 connector for storage

Expansion Slots

1x M.2 connector for WiFi
1x PCIe® 4.0 x 16
2x PCIe® 3.0 x 1

Port

Front I/O Port
2x USB 2.0 Type-A
2x USB 3.2 Gen 2 Type-A
1x USB 3.2 Gen 2*2 Type-C

Rear I/O Port
1x HDMI 1.4
1x VGA Port
1x Displayport 1.4
3x USB 2.0 Type-A
2x USB 3.2 Gen 1 Type-A

Optical Disk Drive

None

Audio

High Definition 7.1 Channel Audio

Audio Jack

Front I/O Port
1x Headphone
1x 3.5 mm combo audio jack (Mic in or Headphone out)

Rear I/O Port
1x 7.1 channel audio (3 ports)

Network

10/100/1000 LAN

Wireless

Wi-Fi 6E (802.11ax)

Bluetooth

Bluetooth 5.3

CardReader

1x 2-in-1 card reader SD / MMC

Power Supply

330W power supply (80+ Platinum, peak 660W)

Keyboard

Yes

Mouse

Yes

OS

Windows 11 Pro

Special Feature

N/A

Dimension

(W x D x H) : 9.30 x 29.60 x 30.90 cm

Net Weight

6.00 KG
