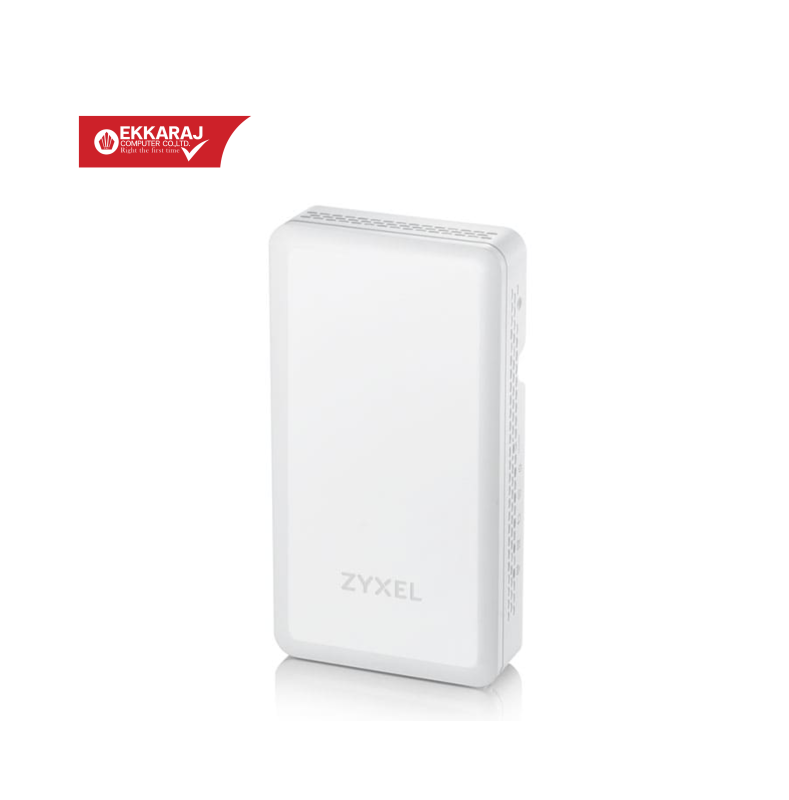

Access Point Zyxel [WAC5302D-S] WAC Series

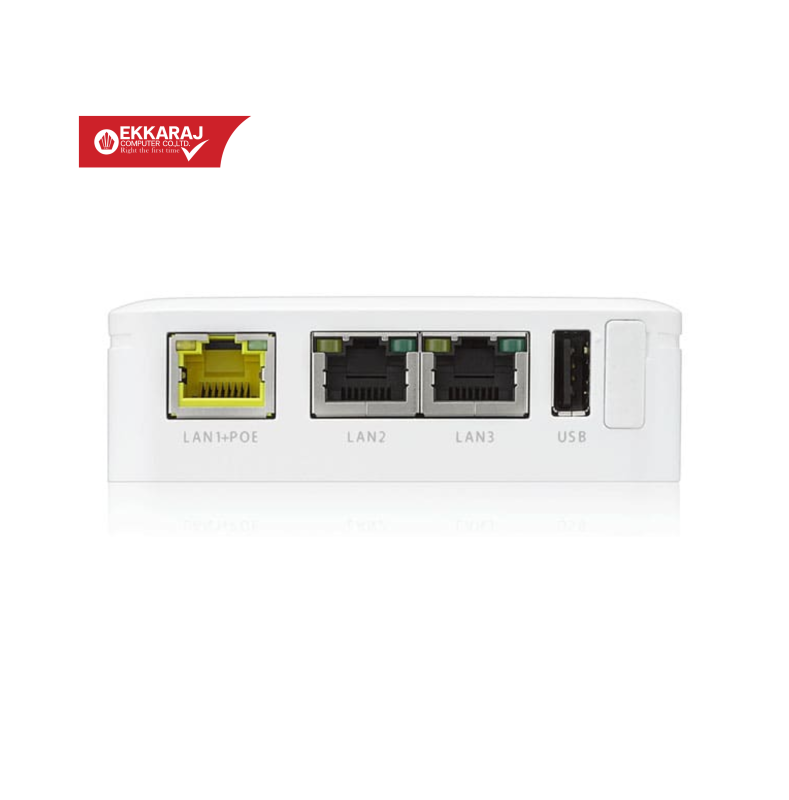

Ports

Uplink:1 x 100/1000 Mbps POE port (PD)
Downlink:3 x 100/1000 Mbps RJ-45 (including one PoE PSE)

Wi-Fi Radio

802.11 a/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24,36, 48, and 54 Mbps
802.11n: p to 300 Mbps in MCS15(40 MHz; GI = 400 ns)
802.11ac: up to 866 Mbps in MCS9(80 MHz; 2 spatial streams; GI = 400 ns)

Wi-Fi Antennas

2×2 multiple-input multiple-output (MIMO) with two spatial streams
Maximal ratio combining (MRC)
20-,40- and 80-MHz channels
PHY data rates up to 300 + 866 Mbps
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
Cyclic Delay diversity (CSD) support
5dBi/5dBi

Power sources

802.3at PoE: 20W (include 7W for PoE PSE)
802.3af PoE: 12W (PoE PSE disabled)

AP Mode

–

Dimension

90 x 170 x 29mm

Weight

320g

Warranty

Limited Lifetime Hardware Warranty
