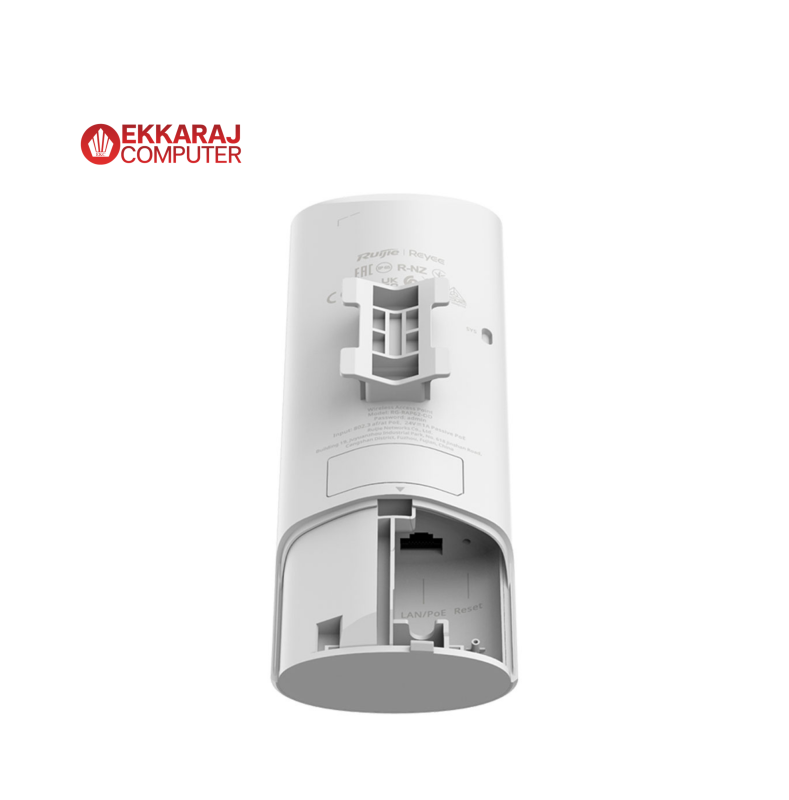

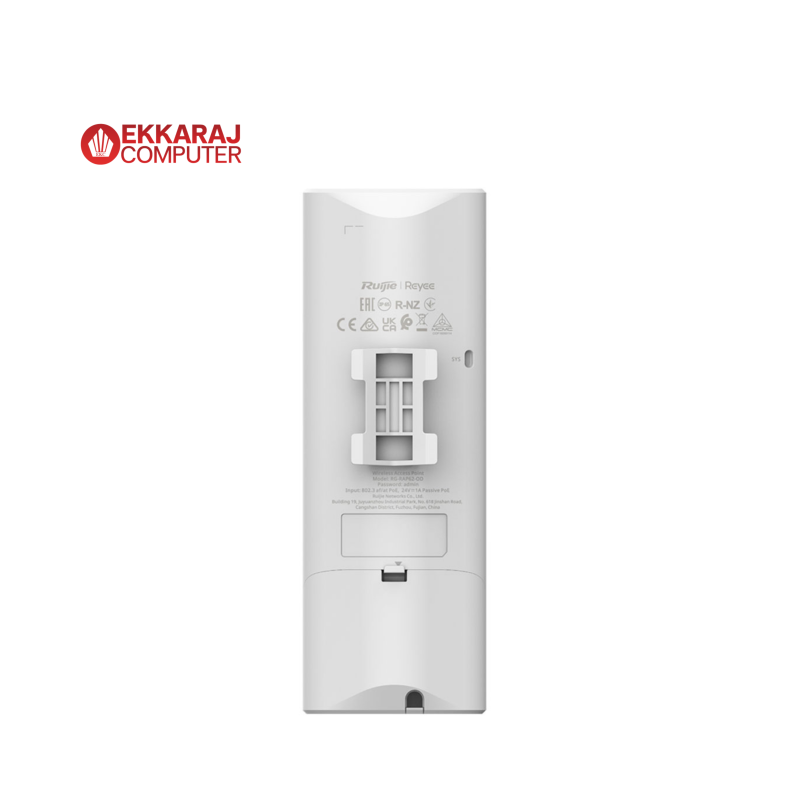

ACCESS POINT REYEE [RG-RAP62-OD] AX3000 WI-FI 6 INDOOR/OUTDOOR VERSATILE

Wireless Access Point RG-RAP62-OD Product Specification

Overview

Reyee by Ruijie RG-RAP52-OD AX3000 Wi-Fi 6 Indoor/Outdoor Versatile Access Point, มาตรฐาน AX 2x2MIMO, 1 Port Lan Gigabit, กันน้ำ กันฝุ่นมาตรฐาน IP65

รองรับ WIFI-Mesh ,Manage ผ่าน Ruijie Cloud, Standalone

5 GHz Wi-Fi Protocols

Wi-Fi 4: IEEE 802.11a/b/g/n
Wi-Fi 5: IEEE 802.11ac Wave 2
Wi-Fi 6: IEEE 802.11ax

2.4 GHz Wi-Fi Protocols

Wi-Fi 4: IEEE 802.11b/g/n
Wi-Fi 6: IEEE 802.11ax

5 GHz Operating Frequency Bands

5.150 GHz to 5.350 GHz,
5.470 GHz to 5.725 GHz,
5.725 GHz to 5.850 GHz

2.4 GHz Operating Frequency Bands

2.400 GHz to 2.4835 GHz

MIMO

2.4 GHz, 2×2 MIMO
5 GHz, 2×2 MIMO

Antenna Gain

5GHz: 6.5dBi
2.4Ghz: 4.0dBi

Max. Wi-Fi Speed

2.4 GHz: 573 Mbps
5 GHz: 2401 Mbps

5 GHz Channel Width

Auto/20/40/80/160 MHz

2.4 GHz Channel Width

Auto/20/40 MHz

Transmit Power

≤200mW(23dBm)

Modulation

OFDM: BPSK@6/9 Mbps, QPSK@12/18 Mbps, 16QAM@24Mbps, 64QAM@48/54 Mbps
DSSS: DBPSK@1 Mbps, DQPSK@2 Mbps, and CCK@5.5/11Mbps
MIMO-OFDM: BPSK, QPSK, 16QAM , 64QAM, 256QAM and 1024QAM OFDMA

Receiver Sensitivity

11b: -91dBm(1Mbps)，-88dBm(5.5Mbps)，-85dBm(11Mbps)
11a/g: -89dBm(6Mbps)，-80dBm(24Mbps)，-76dBm(36Mbps)，-71dBm(54Mbps)
11n: -83dBm(MCS0)，-65dBm(MCS7)，-83dBm(MCS8)，-65dBm(MCS15)
11ac: 20MHz: -83dBm(MCS0), -57dBm(MCS9)
11ac: 40MHz: -79dBm(MCS0), -57dBm(MCS9)
11ac: 80MHz: -76dBm(MCS0), -51dBm(MCS9)
11ax: 20MHz: -85dBm(MCS0), -58dBm(MCS11)
11ax: 40MHz: -82dBm(MCS0), -54dBm(MCS11)
11ax: 80MHz: -79dBm(MCS0), -52dBm(MCS11)

Dimensions

200 mm x 70 mm x 35 mm (7.87 in. x 2.76 in. x 1.38 in.)

Weight

Main Unit: ≤ 0.4 kg

Fixed Ports

1 × 10/100/1000 Base-T port

LEDs

1 × system LED

Power Supply

IEEE 802.3at standard PoE power supply
(ไม่มี POE และ DC Adapter ในชุดอุปกรณ์)

Max. Power Consumption

≤ 16 W

Operating Temperature

–30°C to +65°C (–22°F to +149°F)

Installation

Wall mounting and pole mounting

Software Features

Operating Mode

AP mode and routing mode

Max. Number of Clients

BW160 11AX: 16(2.4G)+94(5G)=110
BW80 11AX: 16(2.4G)+64(5G)=80
11AC: 8(2.4G)+32(5G)=40

WLAN

Up to 8 SSIDs
Support SSID hiding Configuring the authentication mode encryption mechanism
VLAN attributes for each SSID
SSID-based and radio-based STA limit
Support Layer 2 user isolation

Roaming

KV Roaming
Layer 2 Roaming
Layer 3 Roaming

Security

Support PSK authentication
Support Black List / White List:
Maximum 256 rules per SSID
Maximum 1024 rules per AP
Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption
Standalone Portal

Routing

Support static IP address, DHCP, PPPoE Dial Up

Management and maintenance

Support unified networking of all network equipment
Support local or remote management with Ruijie Cloud app
Support local management with web
Support remote management with Ruijie Cloud platform

AP Mesh

Mesh management
Reyee Mesh

ประกัน

ประกันศูนย์ Ruijie Thailand 3 ปี
