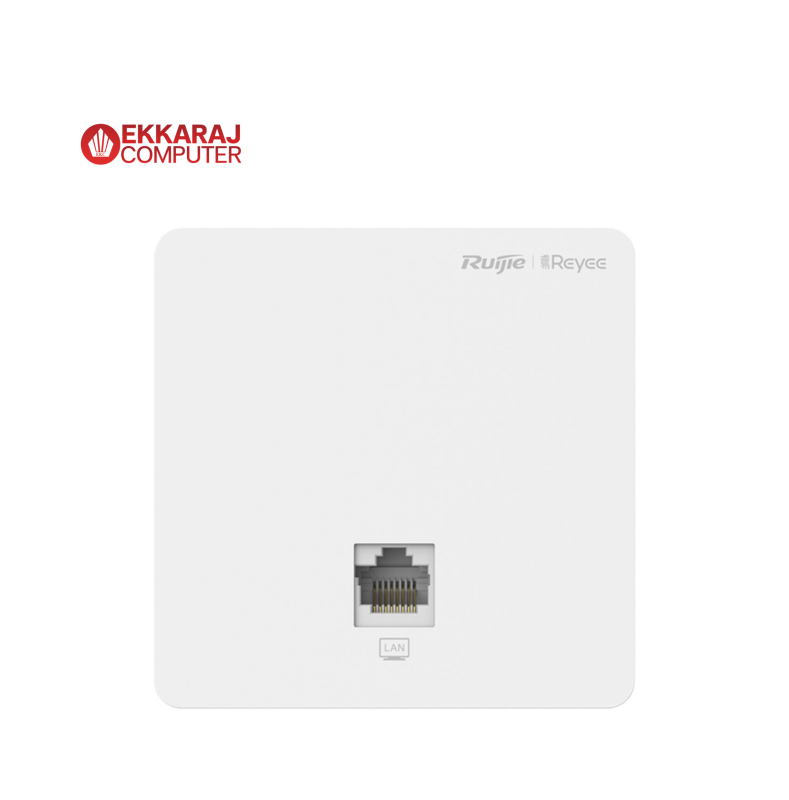

ACCESS POINT REYEE [RG-RAP1200(F)] REYEE WI-FI 5 1267MBPS WALL-MOUNTED

Product Specification

Overview

Reyee by Ruijie RG-RAP1200(F) Wall-Mountable Wireless Access Point  กระจายสัญญาณ 2.4/5GHz Dual-Band มาตรฐาน AC, Port Lan ความเร็ว 10/100Mbps

รองรับการ Control แบบ Stanalone, Free Cloud Control, Hardware Control

Radio

Dual-stream dual-band

Protocol

Concurrent 802.11b/g/n/ac

Operating Bands

802.11b/g/n :2.4G ~ 2.4835GHz
802.11a/n/ac : 5G:5.150~5.350GHz,5.47~5.725,5.725~5.850GHz
(Note: The operating bands vary according to different countries)

Antenna

PCB antenna

Spatial Streams

2.4G: 2 Spatial Streams,2x2 MIMO
5G: 2 Spatial Streams,2x2 MIMO

Max Throughput

2.4G: up to 400Mbps
5G: up to 866.7Mbps

Modulation

OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps

DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps

MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM

Receive Sensitivity

11b:-97dBm(1Mbps)  -92dBm(5Mbps)  -89dBm(11Mbps)
11a/g : -94dBm (6Mbps), -85dBm (24Mbps) , -82dBm (36Mbps) , -76.5dBm (54Mbps)
11n : -93.5dBm@MCS0 -74dBm@MCS7 -74dBm@MCS15
11ac : HT20  : -92.5dBm (MCS0) , -68.5dBm (MCS8)
11ac : HT40 : -89dBm (MCS0), -64dBm (MCS9)
11ac : HT80 : -86dBm (MCS0) -60.5dBm (MCS8)

Maximum Transmit Power

20dBm (adjustable)

Adjustable Power

1dBm

Dimensions

86*86*29.3

Weight

<0.25kg

Service Ports

Front: 1 10/100Mbps Ethernet port
Rear: 1 10/100Mbps PoE Ethernet port

Management Port

N/A

LED Indicator

Support

Power Supply

Support 802.3af power supply

Power Consumption

 <8W

Environment

Operating temperature: 0°C~40°C
Storage temperature: -40°C~70°C
Operating humidity: 5%~95% (non-condensing)
Storage humidity: 5%~95% (non-condensing)

Installation

86mm wall plate installation

IP Rating

IP41

Safety Standard

GB4943, IEC 60950-1

EMC Standard

GB9254, EN301 489,EN50155:EN50121

Vibration Standard

IEC61373

Radio Standard

SRRC certification

Software Features

Operating Mode

AP mode and routing mode

WLAN

Maximum number of clients: 110
Recommended number of clients: 24 (8 at 2.4GHz, 16 at 5GHz)
Up to 8 SSIDs
Support SSID hiding
Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID
SSID-based and radio-based STA limit
Support Layer 2 user isolation

Roaming

Support Layer 2 and Layer 3 roaming

Security

Support static blacklist and whitelist
Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption

Routing

Support static IP address, DHCP, PPPoE Dial Up

Management and maintenance

Support unified networking of all network equipment
Support local or remote management with app
Support local management with web
Support remote management with MACC platform

Platform management features

Automatic RF adjustment via the platform
Unified configuration via the platform
Unified monitoring via the platform

รับประกัน

3 ปี
