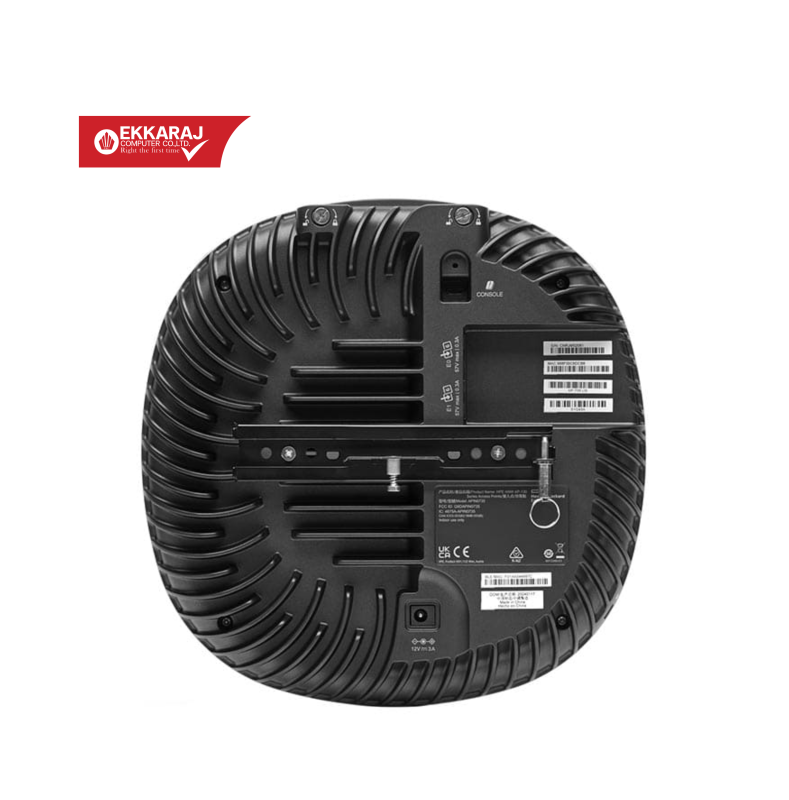

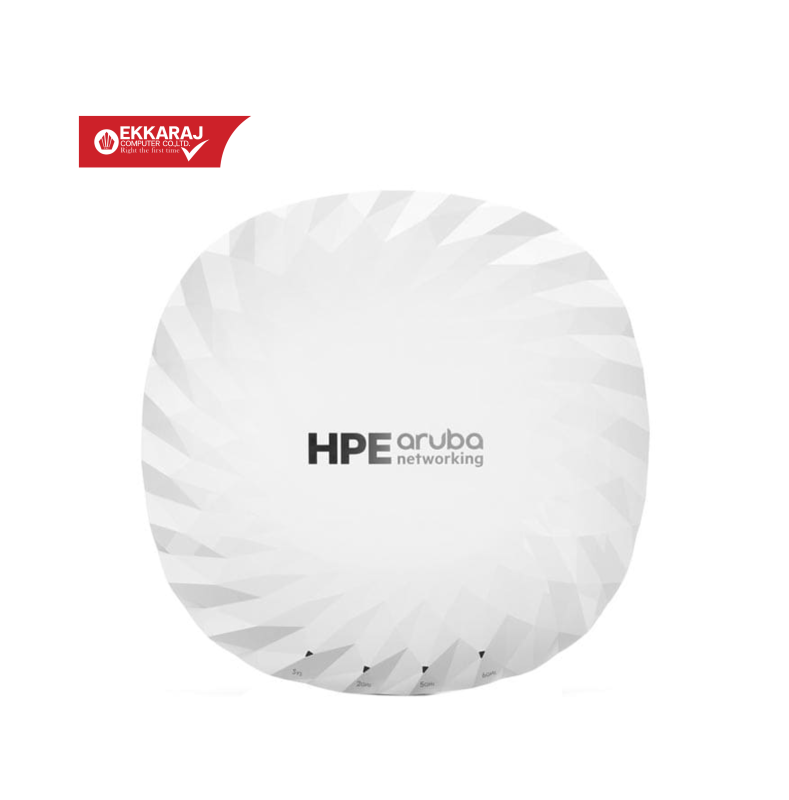

Access Point Aruba [S1G42A] AP-735

Interface

2x  Ethernet wired network ports (RJ‑45);
2x USB 2.0 host interface (Type A connector);
Kensington security slot;

Antenna

Internal antenna: omnidirectional
2.4GHz: peak gain 5.1dBi
5GHz: peak gain 5.5dBi
6GHz: peak gain 5.3 dBi

Data rate supported

802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15, HT20 to HT40), 400 with 256‑QAM (proprietary extension)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80); 1,083 with 1024‑QAM (MCS10 and MCS11, proprietary extension)
802.11ax: 7.3 to 2,402 Mbps (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160)
802.11be: 7.3 to 5,765 Mbps (MCS0 to MCS13, NSS = 1 to 2, EHT20 to EHT320)

Mounting

Ceiling

Dimensions

240 x 240 x 56 mm

Weight

1440 g

Warranty

hardware limited lifetime
