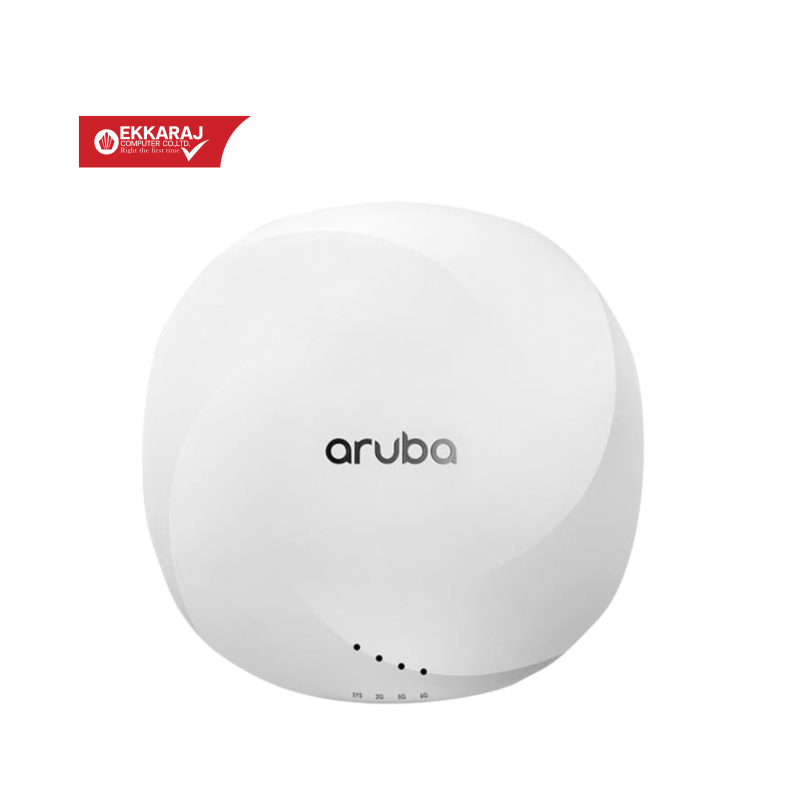

Access Point Aruba [R7J27A] AP-635

Interface

E0, E1: Two Ethernet wired network ports (RJ-45)
-Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX
-2.5Gbps speed complies with NBase-T and 802.3bz specifications
-POE-PD: 48Vdc (nominal) 802.3at/bt POE (class 4 or higher)
-802.3az Energy Efficient Ethernet (EEE)
-Link aggregation (LACP) support between both network ports for redundancy and increased capacity
DC power interface: 12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length
USB 2.0 host interface (Type A connector)

Wi-Fi Radio Specifications

2×2 MIMO with peak antenna gain of 4.6dBi in 2.4GHz, 7.0dBi in 5GHz and 6.3dBi in 6GHz

Wi-Fi Antennas

Internal antenna

Dimension

220mm (W) x 220mm (D) x 51mm (H)

Weight

1300g

Power sources and consumption

Maximum (worst-case) power consumption (without / with a USB device attached):
DC powered: 20.7W / 26.4W
POE powered: 23.8W / 29.4W
This assumes that up to 5W is supplied to the attached USB device
Maximum (worst-case) power consumption in idle mode: 8.7W / 14.2W (DC) or 11.7W / 17.2W (POE)
Maximum (worst-case) power consumption in deep-sleep mode: 1.1W (DC) or 1.9W (POE)

Mounting

Optional

Warranty

Aruba’s hardware limited lifetime warranty
